| General information |
|---|

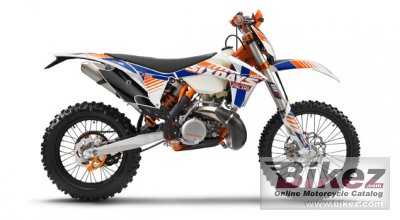

| Model: | KTM 250 EXC-F Six Days |
| Year: | 2012 |
| Category: | Enduro / offroad |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 248.60 ccm (15.17 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Compression: | 12.8:1 |
| Bore x stroke: | 76.0 x 54.8 mm (3.0 x 2.2 inches) |
| Fuel system: | Carburettor. Keihin FCR MX 39 |
| Ignition: | Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment, type Kokusan |
| Lubrication system: | Forced oil lubrication with 2 Eaton pumps |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Wet multi disk clutch / hydraulically operated |
| Driveline: | 14:50 (13:50). Primary gear ratio 22:68. |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Central tube frame made of chrome molybdenum steel tubing |
| Rake (fork angle): | 26.5° |
| Front suspension: | WP USD 48 mm (1.89 in) |
| Front wheel travel: | 300 mm (11.8 inches) |
| Rear suspension: | WP PDS shock absorber |
| Rear wheel travel: | 335 mm (13.2 inches) |
| Front tyre: | 90/90-21 |
| Rear tyre: | 120/90-18 |
| Front brakes: | Single disc |
| Front brakes diameter: | 260 mm (10.2 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 220 mm (8.7 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 107.5 kg (237.0 pounds) |
| Seat height: | 970 mm (38.2 inches) If adjustable, lowest setting. |
| Ground clearance: | 345 mm (13.6 inches) |
| Wheelbase: | 1,482 mm (58.3 inches) |
| Fuel capacity: | 9.20 litres (2.43 gallons) |
| Other specifications |
|---|
| Color options: | Orange/white/black/blue |
| Starter: | Electric & kick |
| Comments: | Racing tuned version. |
