KTM 125 SX 20112011 KTM 125 SX specifications, pictures, reviews and rating |

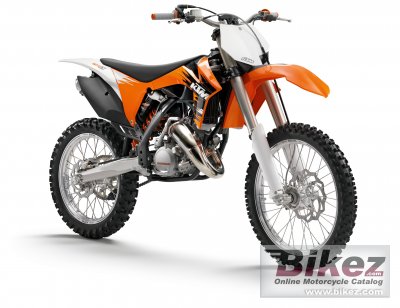

2011 KTM 125 SX. Image credits - KTM.
| KTM's profilation of this bike |
| Those seeking a contender in the Junior World Championship need look no further than the 125 SX. Thanks to the improved silencer, new airbox and the flow-optimised intake flange between filter and carburettor, the 125 SX has even more power at its disposal. |
| General information | |
|---|---|
| Model | KTM 125 SX |
| Model year | 2011 |
| Category | Enduro / offroad |
| Rating | 3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 124.8 ccm (7.62 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Bore x stroke | 54.0 x 54.5 mm (2.1 x 2.1 inches) |
| Fuel system | Carburettor. Keihin PWK 38S AG |
| Ignition | Kokusan |
| Lubrication system | Mixture oil lubrication 1:40 |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet mDouble disk clutch, operated hydraulically |
| Driveline | 13:50. Primary drive: 23:73. |
| Exhaust system | Aluminium |
| Chassis, suspension, brakes and wheels | |
| Frame type | Central double-cradle-type 25CrMo4. Subframe: Aluminium. |
| Rake (fork angle) | 26.5° |
| Front suspension | WP USD 48 mm (1.89 in) |
| Front wheel travel | 185 mm (7.3 inches) |
| Rear suspension | WP PDS shock absorber |
| Rear wheel travel | 185 mm (7.3 inches) |
| Front tire | 80/100-21 |
| Rear tire | 100/90-19 |
| Front brakes | Single disc |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Wheels | 1.60 x 21in., 2.15 x 19in. Excel |
| Physical measures and capacities | |
| Dry weight | 88.8 kg (195.8 pounds) |
| Seat height | 992 mm (39.1 inches) If adjustable, lowest setting. |
| Ground clearance | 385 mm (15.2 inches) |
| Wheelbase | 1480 mm (58.3 inches) |
| Fuel capacity | 7.50 litres (1.98 US gallons) |
| Other specifications | |
| Color options | Orange/black/white |
| Starter | Kick |
