13 KTM 125 Duke specificationsKTM 125 Duke 2013

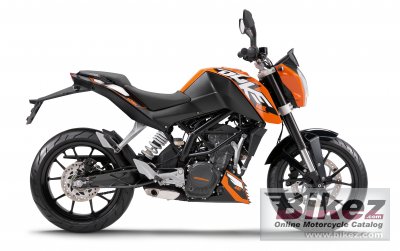

2013 KTM 125 Duke photo
Picture credits - KTM. Click to submit more pictures.
   Show big 2013 KTM 125 Duke imageShow more 2013 KTM 125 Duke images
2013 KTM 125 Duke

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



KTM's profilation of this bike
The first 125cc KTM for the road – for all young people and the young at heart alike. The 125 Duke offers maximum riding fun, thanks to thoroughbred motorcycle technology. The featherweight chassis with high-quality components and first-class brakes guarantees dynamic cornering fun. The refined four-stroke single cylinder with fuel injection and six-gear transmission provides adequate propulsion.

General information
Model:KTM 125 Duke
Year:2013
Category:Naked bike
Rating:71.1 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:125.00 ccm (7.63 cubic inches)
Engine type:Single cylinder, four-stroke
Power:14.75 HP (10.8 kW))
Bore x stroke:58.0 x 47.2 mm (2.3 x 1.9 inches)
Ignition:Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment, type Kokusan
Lubrication system:Forced oil lubrication with 2 Eaton pumps
Cooling system:Liquid
Gearbox:6-speed
Clutch:Wet multi-disc clutch / hydraulically operated
Driveline:5/8  x  1/4 ¯ (520) O Ring. Primary drive: 22:72.
Chassis, suspension, brakes and wheels
Frame type:Tubular space frame made from steel tubes, powder-coated
Rake (fork angle):25.0°
Front suspension:WP  Suspension 4357
Front suspension travel:150 mm (5.9 inches)
Rear suspension:WP  Suspension  4618 EM
Rear suspension travel:150 mm (5.9 inches)
Front brakes:Single disc. Two-piston calipers.
Front brakes diameter:280 mm (11.0 inches)
Rear brakes:Single disc. Floating disc. Single-piston caliper.
Rear brakes diameter:230 mm (9.1 inches)
Physical measures and capacities
Dry weight:125.0 kg (275.6 pounds)
Power/weight ratio:0.1180 HP/kg
Seat height:810 mm (31.9 inches) If adjustable, lowest setting.
Ground clearance:170 mm (6.7 inches)
Wheelbase:1,361 mm (53.6 inches)
Fuel capacity:10.50 litres (2.77 gallons)
Other specifications
Starter:Electric
Color options:Black/grey, black/orange
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 13 KTM 125 Duke discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Rate motorcycles you know

Rate motorcycles you know and help your fellow riders to find the bike that is right for them. Bikez has the most users and the most extensive motorcycle rating on the net. It includes reliability, design, engine performance, accident risk, repair cost, offroad capabilities, racing track capabilities and touring capabilities.

The ratings are also used to rank the 100 most popular MC models each year since 1990. The lists are adjusted weekly as new ratings are added. You can check out the rating of the 2013 KTM 125 Duke and compare it to other bikes here.


Rating sample for this KTM bike
Engine performance for the 2013 KTM 125 Duke:


(60.8 out of 100)

Click here for complete rating. You can also compare bikes.
