| KTM's profilation of this bike |
| Sharper and lighter than anything that calls itself competition: 123 Nm torque, 170 HP at 10,250 rpm and withs less than 200 kilos fully tanked. |
| General information |
|---|

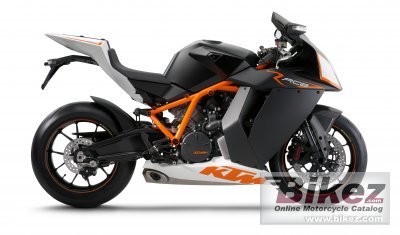

| Model: | KTM 1190 RC8 R | | Year: | 2010 | | Category: | Sport | | Rating: | 66.9 out of 100. Show full rating and compare with other bikes | | Engine and transmission |
|---|
| Displacement: | 1195.00 ccm (72.92 cubic inches) | | Engine type: | Twin, four-stroke | | Power: | 167.63 HP (122.4 kW)) @ 10250 RPM | | Torque: | 123.00 Nm (12.5 kgf-m or 90.7 ft.lbs) @ 8000 RPM | | Compression: | 13.5:1 | | Bore x stroke: | 105.0 x 69.0 mm (4.1 x 2.7 inches) | | Valves per cylinder: | 4 | | Fuel system: | Injection. Keihin EFI (throttle body 52 mm) | | Fuel control: | DOHC | | Lubrication system: | Pressure lubrication with 3 Eaton pumps | | Cooling system: | Liquid | | Gearbox: | 6-speed | | Clutch: | Wet mDouble disk clutch, operated hydraulically | | Exhaust system: | Stainless steel underfloor silencer with regulated catalytic converter | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Chromium-Molybdenum trellis frame, powder-coated | | Rake (fork angle): | 23.3° | | Trail: | 97 mm (3.8 inches) | | Front suspension: | WP-USD fork | | Front suspension travel: | 120 mm (4.7 inches) | | Rear suspension: | WP-Monoshock | | Rear suspension travel: | 120 mm (4.7 inches) | | Front tyre dimensions: | 120/70-17 | | Rear tyre dimensions: | 190/55-17 | | Front brakes: | Double disc. Brem | | Front brakes diameter: | 320 mm (12.6 inches) | | Rear brakes: | Single disc | | Rear brakes diameter: | 220 mm (8.7 inches) | | Physical measures and capacities |
|---|
| Dry weight: | 182.0 kg (401.2 pounds) | | Power/weight ratio: | 0.9210 HP/kg | | Seat height: | 805 mm (31.7 inches) If adjustable, lowest setting. | | Alternate seat height: | 825 mm (32.5 inches) If adjustable, highest setting. | | Ground clearance: | 110 mm (4.3 inches) | | Fuel capacity: | 16.50 litres (4.36 gallons) | | Other specifications |
|---|
| Color options: | Black/gray/orange | | Further information |
|---|
