| General information |
|---|

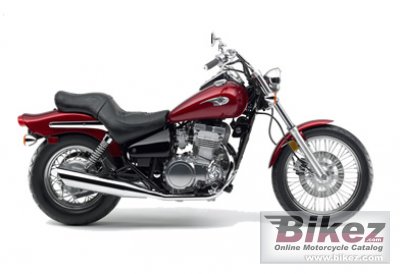

| Model: | Kawasaki Vulcan 500 LTD |
| Year: | 2006 |
| Category: | Custom / cruiser |
| Rating: | 71 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 498.00 ccm (30.39 cubic inches) |
| Engine type: | Twin |
| Stroke: | 4 |
| Torque: | 44.74 Nm (4.6 kgf-m or 33.0 ft.lbs) @ 6000 RPM |
| Compression: | 10.2:1 |
| Bore x stroke: | 74.0 x 58.0 mm (2.9 x 2.3 inches) |
| Fuel system: | Carburettor. Keihin CVK32 x 2 |
| Fuel control: | DOHC |
| Ignition: | TCBI wtih Digital Advance |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type
final drive: | Chain |
| Physical measures |
|---|
| Dry weight: | 199.1 kg (439.0 pounds) |
| Seat height: | 714 mm (28.1 inches) If adjustable, lowest setting. |
| Wheelbase: | 1,595 mm (62.8 inches) |
| Chassis and dimensions |
|---|
| Rake (fork angle): | 33.0° |
| Front suspension: | 41mm Hydraulic Telescopic Fork |
| Rear suspension: | Twin Shocks with 5-Way Adjustable Preload |
| Front tyre dimensions: | 100/90-19 |
| Rear tyre dimensions: | 140/90-15 |
| Front brakes: | Single disc |
| Rear brakes: | Expanding brake (drum brake) |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 15.14 litres (4.00 gallons) |
| Color options: | Candy Fire Red |
