| Kawasaki's profilation of this bike |
| There’s only one choice of engine layout for a custom cruiser – a V-twin. This one is liquid-cooled, displaces 903cc and uses precise fuel injection to deliver effortless torque. |
| General information |
|---|

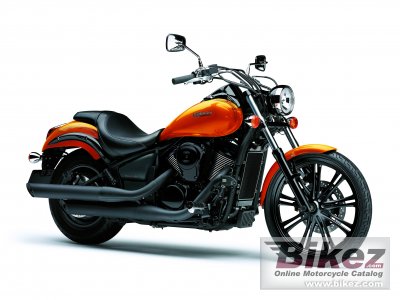

| Model: | Kawasaki VN 900 Custom | | Year: | 2012 | | Category: | Custom / cruiser | | Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. | | Engine and transmission |
|---|
| Displacement: | 903.00 ccm (55.10 cubic inches) | | Engine type: | V2, four-stroke | | Power: | 49.62 HP (36.2 kW)) @ 5700 RPM | | Torque: | 78.00 Nm (8.0 kgf-m or 57.5 ft.lbs) @ 3700 RPM | | Compression: | 9.5:1 | | Bore x stroke: | 88.0 x 74.2 mm (3.5 x 2.9 inches) | | Valves per cylinder: | 4 | | Fuel system: | Injection | | Fuel control: | SOHC | | Ignition: | Digital | | Cooling system: | Liquid | | Gearbox: | 5-speed | Transmission type,
final drive: | Belt | | Clutch: | Wet, multiplate | | Emission details: | Euro III | | Exhaust system: | Slash-cut stacked silencers | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Double-cradle, steel | | Rake (fork angle): | 33.0° | | Trail: | 182 mm (7.2 inches) | | Front suspension: | 41 mm telescopic fork | | Rear suspension: | Uni-Trak | | Front tyre dimensions: | 80/90-M21 | | Rear tyre dimensions: | 180/70-M15 | | Front brakes: | Single disc | | Front brakes diameter: | 300 mm (11.8 inches) | | Rear brakes: | Single disc | | Rear brakes diameter: | 270 mm (10.6 inches) | | Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 278.0 kg (612.9 pounds) | | Seat height: | 685 mm (27.0 inches) If adjustable, lowest setting. | | Overall length: | 2,405 mm (94.7 inches) | | Overall width: | 895 mm (35.2 inches) | | Wheelbase: | 1,645 mm (64.8 inches) | | Fuel capacity: | 20.00 litres (5.28 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Color options: | Orange | | Further information |
|---|
