| General information |
|---|

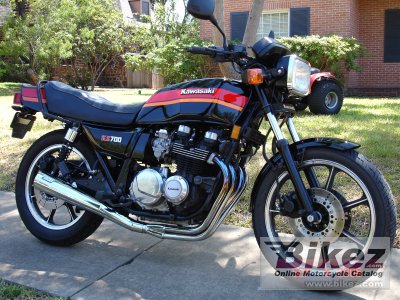

| Model: | Kawasaki KZ 700-A1 |
| Year: | 1984 |
| Category: | Sport |
| Rating: | 68.2 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 694.00 ccm (42.35 cubic inches) |
| Engine type: | In-line four |
| Stroke: | 4 |
| Compression: | 9.7:1 |
| Bore x stroke: | 64.0 x 54.0 mm (2.5 x 2.1 inches) |
| Fuel system: | Carburettor. Mikuni BS34 |
| Valves per cylinder: | 2 |
| Fuel control: | DOHC |
| Ignition: | Transistorized ignition |
| Starter: | Electric |
| Lubrication system: | Wet sump |
| Cooling system: | Air |
| Gearbox: | 5-speed |
Transmission type
final drive: | Chain |
| Clutch: | Wet plate |
| More details | Consult a Kawasaki repair manual. |
| Physical measures |
|---|
| Dry weight: | 216.0 kg (476.2 pounds) |
| Seat height: | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Overall height: | 1,130 mm (44.5 inches) |
| Overall length: | 2,170 mm (85.4 inches) |
| Overall width: | 770 mm (30.3 inches) |
| Ground clearance: | 140 mm (5.5 inches) |
| Wheelbase: | 1,460 mm (57.5 inches) |
| Chassis and dimensions |
|---|
| Rake (fork angle): | 27.0° |
| Trail: | 107 mm (4.2 inches) |
| Front suspension: | Air-adjustable telescopic fork |
| Rear suspension: | Dual shocks with adjustable preload and damping |
| Front tyre dimensions: | 100/90-19-57H |
| Rear tyre dimensions: | 120/90-18-65H |
| Front brakes: | Double disc. 1-piston calipers |
| Rear brakes: | Single disc. 1-piston caliper |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 21.70 litres (5.73 gallons) |
| Reserve fuel capacity: | 2.00 litres (0.53 gallons) |
