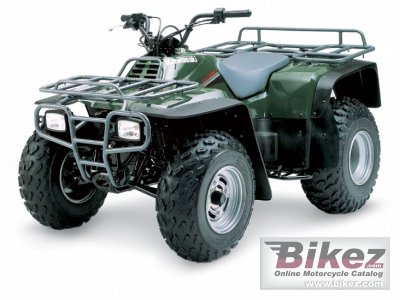

| Kawasaki's profilation of this bike |
| In two wheel drive guise, the KLF300 continues to exceed the expectations of discerning buyers needing the most manoeuvrable and reliable of machines. |
| General information |
|---|
| Model: | Kawasaki KLF300 | | Year: | 2009 | | Category: | ATV | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 290.00 ccm (17.70 cubic inches) | | Engine type: | Single cylinder | | Stroke: | 4 | | Compression: | 8.6:1 | | Bore x stroke: | 76.0 x 64.0 mm (3.0 x 2.5 inches) | | Fuel system: | Carburettor. Keihin CVK 34 | | Valves per cylinder: | 2 | | Fuel control: | SOHC | | Ignition: | TCBI | | Starter: | Electric | | Cooling system: | Air | | Gearbox: | 5-speed | Transmission type
final drive: | Shaft drive (cardan) | | Physical measures |
|---|
| Dry weight: | 229.0 kg (504.9 pounds) | | Overall height: | 1,065 mm (41.9 inches) | | Overall length: | 1,910 mm (75.2 inches) | | Overall width: | 1,116 mm (43.9 inches) | | Ground clearance: | 154 mm (6.1 inches) | | Chassis and dimensions |
|---|
| Front suspension: | Independent double wishbone with dual adjustable | | Rear suspension: | Quad-Link with twin shock absorbers | | Front tyre dimensions: | 22/9-10 (AT) | | Rear tyre dimensions: | 24/11-10 (AT) | | Front brakes: | Double disc | | Rear brakes: | Expanding brake (drum brake) | | Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 9.00 litres (2.38 gallons) | | Color options: | Hunter green | | Comments: | 5-speed semi-automatic, 2WD with reverse. | | Further information |
|---|
