| General information |
|---|

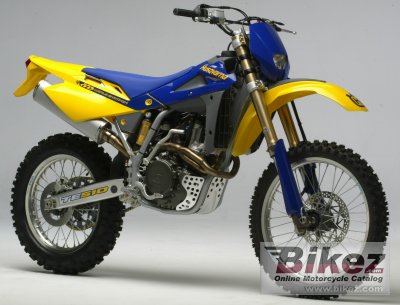

| Model: | Husqvarna TE 510 |
| Year: | 2005 |
| Category: | Enduro / offroad |
| Rating: | 74 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 501.03 ccm (30.57 cubic inches) |
| Engine type: | Single cylinder |
| Stroke: | 4 |
| Compression: | 12.5:1 |
| Bore x stroke: | 97.0 x 67.8 mm (3.8 x 2.7 inches) |
| Fuel system: | Carburettor. Keihin MX 41 mm |
| Valves per cylinder: | 4 |
| Fuel control: | DOHC |
| Ignition: | CDI electronic |
| Starter: | Electric |
| Lubrication system: | Dry sump with two oil pump rotor and cartridge filter |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type
final drive: | Chain |
| Clutch: | Wet, multiplate type, hydraulic |
| Physical measures |
|---|
| Weight incl. oil, gas, etc: | 116.5 kg (256.8 pounds) |
| Seat height: | 975 mm (38.4 inches) If adjustable, lowest setting. |
| Overall height: | 1,290 mm (50.8 inches) |
| Overall length: | 2,215 mm (87.2 inches) |
| Overall width: | 820 mm (32.3 inches) |
| Ground clearance: | 340 mm (13.4 inches) |
| Wheelbase: | 1,460 mm (57.5 inches) |
| Chassis and dimensions |
|---|
| Frame type: | Single tube cradle with rear frame in light alloy |
| Front suspension: | Marzocchi 45 mm Upside-Down telescopic hydraulic fork with advanced axle |
| Front suspension travel: | 300 mm (11.8 inches) |
| Rear suspension: | Sachs progressive |
| Rear suspension travel: | 320 mm (12.6 inches) |
| Front tyre dimensions: | 90/90-21 |
| Rear tyre dimensions: | 140/80-18 |
| Front brakes: | Single disc |
| Front brakes diameter: | 260 mm (10.2 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 220 mm (8.7 inches) |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 9.20 litres (2.43 gallons) |
