13 Husqvarna SMR630 specificationsHusqvarna SMR630 2013

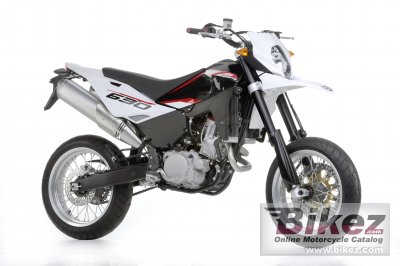

2013 Husqvarna SMR630 photo
Picture credits - Husqvarna. Click to submit more pictures.
   Show big 2013 Husqvarna SMR630 imageShow more 2013 Husqvarna SMR630 images
2013 Husqvarna SMR630

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Husqvarna's profilation of this bike
The seat, fuel tank, side panels, air ducts and mudguards at the front and rear all have a new design. The seat has new dual density padding to ensure greater comfort for rider and passenger even on longer routes. The passenger also has two convenient grab handles anchored to the rear sub-frame for a safer, more comfortable ride.

General information
Model:Husqvarna SMR630
Year:2013
Category:Super motard
Rating:Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating.
Engine and transmission
Displacement:600.00 ccm (36.61 cubic inches)
Engine type:Single cylinder, four-stroke
Compression:12.4:1
Bore x stroke:100.0 x 76.4 mm (3.9 x 3.0 inches)
Valves per cylinder:4
Fuel system:Injection. Mikuni Digital
Fuel control:DOHC
Ignition:Electronic, inductive discharge, with adjustable advance (digital control)
Lubrication system:Wet sump with oil pump and cartridge filter
Cooling system:Liquid
Gearbox:6-speed
Transmission type,
final drive:
Chain
Clutch:Wet, multi-plate type, hydraulic control
Driveline:6 speed constant mesh
Chassis, suspension, brakes and wheels
Frame type:Steel single tube cradle; rear frame in light alloy
Trail:83 mm (3.3 inches)
Front suspension:Marzocchi USD telescopic hydraulic fork with advanced axle, rebound stroke adjustment
Front suspension travel:250 mm (9.8 inches)
Rear suspension:Sachs Progressive Soft Damp type with single hydraulic shock absorber, spring pre-load adjustment. Compression and rebound adjustment (compression stroke - double adjustment)
Rear suspension travel:290 mm (11.4 inches)
Front tyre dimensions:120/70-17
Rear tyre dimensions:150/60-17
Front brakes:Single disc. Floating disc with hydraulic control and radial caliper
Front brakes diameter:320 mm (12.6 inches)
Rear brakes:Single disc. Floating disc with hydraulic control and floating caliper
Rear brakes diameter:220 mm (8.7 inches)
Physical measures and capacities
Dry weight:151.0 kg (332.9 pounds)
Seat height:910 mm (35.8 inches) If adjustable, lowest setting.
Overall height:1,190 mm (46.9 inches)
Overall length:2,170 mm (85.4 inches)
Overall width:840 mm (33.1 inches)
Ground clearance:240 mm (9.4 inches)
Wheelbase:1,495 mm (58.9 inches)
Fuel capacity:12.00 litres (3.17 gallons)
Other specifications
Starter:Electric
Instruments:Digital dash
Light:60W headlight
Factory warranty:2 Years
Color options:White/black/red
