05 Husqvarna SM 610 specificationsHusqvarna SM 610 2005

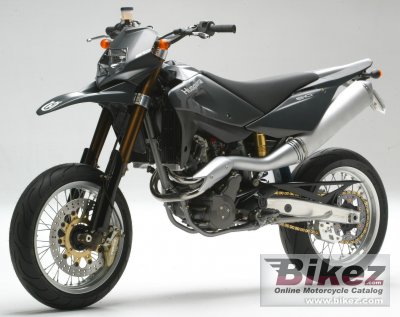

2005 Husqvarna SM 610 photo
Picture credits - Husqvarna. Click to submit more pictures.

2005 Husqvarna SM 610

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



General information
Model:Husqvarna SM 610
Year:2005
Category:Super motard
Rating:75.3 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:576.28 ccm (35.16 cubic inches)
Engine type:Single cylinder
Stroke:4
Compression:9.0:1
Bore x stroke:98.0 x 76.4 mm (3.9 x 3.0 inches)
Fuel system:Carburettor. Dell´Orto PHBH or Mikuni BST, 40 mm
Valves per cylinder:4
Fuel control:SOHC
Ignition:Analogic
Starter:Electric
Lubrication system:Forced lubrification with double pump
Cooling system:Liquid
Gearbox:6-speed
Transmission type
final drive:
Chain
Clutch:Wet, multiplate type, hydraulic
Physical measures
Weight incl. oil, gas, etc:148.3 kg (326.9 pounds)
Seat height:850 mm (33.5 inches) If adjustable, lowest setting.
Overall height:1,240 mm (48.8 inches)
Overall length:2,200 mm (86.6 inches)
Overall width:820 mm (32.3 inches)
Ground clearance:240 mm (9.4 inches)
Wheelbase:1,500 mm (59.1 inches)
Chassis and dimensions
Frame type:Steel single tube craddle, rear frame with steel square tubes
Front suspension:Upside-down Marzocchi telescopic hydraulic fork
Front suspension travel:250 mm (9.8 inches)
Rear suspension:Progressive soft damp
Rear suspension travel:285 mm (11.2 inches)
Front tyre dimensions:120/70-17
Rear tyre dimensions:150/60-17
Front brakes:Single disc
Front brakes diameter:320 mm (12.6 inches)
Rear brakes:Single disc
Rear brakes diameter:220 mm (8.7 inches)
Speed and acceleration
Other specifications
Fuel capacity:9.10 litres (2.40 gallons)
Color options:Black
Further information
Parts and accessoriesCheck out parts and accessories from our partners. Husqvarna SM 610 accessories
Ask questionsJoin the 05 Husqvarna SM 610 discussion group,
the new Husqvarna forum at Bikez.name or
the new Super motard forum at Bikez.name.
Insurance, loans, tests Search the web for dealers, loan and insurance costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Discussions for every bike

Bikez has discussion forums for every bike. View comments, questions and answers at the 2005 Husqvarna SM 610 discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review.

If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.


Rating sample for this Husqvarna bike
Offroad capabilities for the 2005 Husqvarna SM 610:


(71.7 out of 100)

Click here for complete rating. You can also compare bikes.
