2004 Husqvarna SM 570 R specifications, pictures, reviews and rating

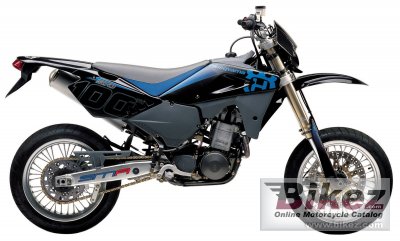

Picture credits - Husqvarna. Click to submit more pictures.
|Model:||Husqvarna SM 570 R|
|Category:||Enduro / offroad|
|Rating:||75.1 out of 100. Show full rating and compare with other bikes|
|Engine and transmission|
|Displacement:||576.28 ccm (35.16 cubic inches)|
|Engine type:||Single cylinder, four-stroke|
|Bore x stroke:||98.0 x 76.4 mm (3.9 x 3.0 inches)|
|Valves per cylinder:||4|
|Chassis, suspension, brakes and wheels|
|Frame type:||Steel singel tube cradle. Rear frame in light alloy.|
|Front suspension:||Marzocchi upside-down telescopic hydraulic adjustable fork|
|Front suspension travel:||300 mm (11.8 inches)|
|Rear suspension:||Sachs progressive soft-dump with single hydraulic|
|Rear suspension travel:||320 mm (12.6 inches)|
|Front tyre dimensions:||120/70-17|
|Rear tyre dimensions:||150/60-17|
|Front brakes:||Single disc|
|Front brakes diameter:||320 mm (12.6 inches)|
|Rear brakes:||Single disc|
|Rear brakes diameter:||220 mm (8.7 inches)|
|Physical measures and capacities|
|Dry weight:||125.3 kg (276.2 pounds)|
|Seat height:||920 mm (36.2 inches) If adjustable, lowest setting.|
|Overall height:||810 mm (31.9 inches)|
|Overall length:||2,170 mm (85.4 inches)|
|Overall width:||1,260 mm (49.6 inches)|
|Ground clearance:||265 mm (10.4 inches)|
|Wheelbase:||1,495 mm (58.9 inches)|
|Fuel capacity:||9.00 litres (2.38 gallons)|
