13 Husqvarna SM50 specificationsHusqvarna SM50 2013

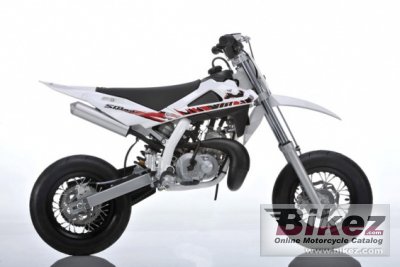

2013 Husqvarna SM50 photo
Picture credits - Husqvarna. Click to submit more pictures.
Show more 2013 Husqvarna SM50 images
2013 Husqvarna SM50

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
List all mopeds

Tip a friend
List related bikes



Husqvarna's profilation of this bike
The essence of a real dirt bike in miniature. This is the nature of the new Husqvarna SM50, the ´mini´ that has everything you need to make your debut as a real rider. Liquid cooled two stroke engine, disc brakes, adjustable suspensions, steel chassis with the same shape as the Husqvarna racing bike, single cylinder engine with a clutch that can be adjusted according to the rider´s ability.

General moped information
Model:Husqvarna SM50
Year:2013
Category:Minibike, sport
Rating:Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating.
Engine and transmission
Displacement:49.00 ccm (2.99 cubic inches)
Engine type:Single cylinder, two-stroke
Compression:7.1:1
Bore x stroke:39.5 x 40.0 mm (1.6 x 1.6 inches)
Fuel system:Carburettor. Dell´Orto PHBG 19
Ignition:Electronic C.D.I.
Lubrication system:Premix 50 : 1
Cooling system:Liquid
Transmission type,
final drive:
Chain
Clutch:Dry, centrifugal type
Driveline:Single speed, chain final drive
Chassis, suspension, brakes and wheels
Frame type:Steel single tube, steel rear frame
Front suspension:Marzocchi Upside-Down telescopic hydraulic fork with advanced axle
Front suspension travel:185 mm (7.3 inches)
Rear suspension:Sachs Progressive Soft Damp type with single hydraulic shock absorber, spring pre-load adjustment
Rear suspension travel:200 mm (7.9 inches)
Front tyre dimensions:90/90-10
Rear tyre dimensions:90/90-10
Front brakes:Single disc. Fixed disc and caliper with hydraulic control
Front brakes diameter:160 mm (6.3 inches)
Rear brakes:Single disc. Fixed disc and caliper with hydraulic control
Rear brakes diameter:140 mm (5.5 inches)
Physical measures and capacities
Dry weight:43.4 kg (95.7 pounds)
Seat height:680 mm (26.8 inches) If adjustable, lowest setting.
Overall height:880 mm (34.6 inches)
Overall length:1,400 mm (55.1 inches)
Overall width:655 mm (25.8 inches)
Ground clearance:250 mm (9.8 inches)
Wheelbase:995 mm (39.2 inches)
Fuel capacity:2.70 litres (0.71 gallons)
Other specifications
Starter:Kick
Color options:White/black/red
