04 Honda XR 650 R specificationsHonda XR 650 R 2004

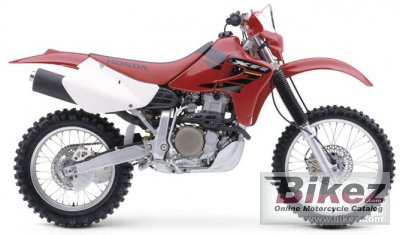

2004 Honda XR 650 R photo
Picture credits - Honda. Click to submit more pictures.
   Show big 2004 Honda XR 650 R imageShow more 2004 Honda XR 650 R images
2004 Honda XR 650 R

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Honda's profilation of this bike
Meet the machine that utterly owns the desert: the multi-time Baja champ XR650R. With its lightweight-aluminum frame and potent liquid-cooled engine, the XR650R simply stands alone as the premier open-class four-stroke dirt bike.

General information
Model:Honda XR 650 R
Year:2004
Category:Enduro / offroad
Rating:76 out of 100. Show full rating and compare with other bikes
Price as new (MSRP):US$ 5999. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:649.00 ccm (39.60 cubic inches)
Engine type:Single cylinder, four-stroke
Compression:10.0:1
Bore x stroke:100.0 x 82.6 mm (3.9 x 3.3 inches)
Valves per cylinder:4
Fuel system:Carburettor
Fuel control:SOHC
Cooling system:Liquid
Gearbox:5-speed
Transmission type,
final drive:
Chain
Chassis, suspension, brakes and wheels
Rake (fork angle):27.8
Trail:111 mm (4.4 inches)
Front suspension:46mm leading-axle Kayaba cartridge fork with compression- and rebound-damping adjustability.
Front suspension travel:284 mm (11.2 inches)
Rear suspension:Pro-Link Kayaba single-shock with spring-preload, compression- and rebound-damping adjustability.
Rear suspension travel:307 mm (12.1 inches)
Front tyre dimensions:80/90-21
Rear tyre dimensions:110/90-18
Front brakes:Single disc
Front brakes diameter:240 mm (9.4 inches)
Rear brakes:Single disc
Rear brakes diameter:240 mm (9.4 inches)
Physical measures and capacities
Seat height:935 mm (36.8 inches) If adjustable, lowest setting.
Wheelbase:1,481 mm (58.3 inches)
Fuel capacity:9.84 litres (2.60 gallons)
Reserve fuel capacity:1.89 litres (0.50 gallons)
Other specifications
Color options:Red
Comments:Model id XR650R.
Further information
Parts and accessories Our partner CMSNL ships low cost OEM motorcycle parts to Australia, Austria, Bahamas, Belgium, Canada, China, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hong Kong, Hungary, Iceland, India, Ireland, Italy, Japan, Kuwait, Latvia, Lithuania, Luxembourg, Macedonia, Malta, Montenegro, The Netherlands, New Zealand, Norway, Poland, Portugal, Serbia, Slovakia, Slovenia, South Africa, Spain, Sweden, Switzerland, Taiwan, Ukraine, United Kingdom, The United States and more. Or check out parts and accessories from our other partners.
Ask questionsJoin the 04 Honda XR 650 R discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Sell or buy used bikes?

Bikez.biz has an efficient motorcycle classifieds. Ads are free. Click here to sell a used 2004 Honda XR 650 R or advertise any other MC for sale. You can list all 2004 Honda XR 650 R available and also sign up for e-mail notification when such bikes are advertised in the future. Bikez has a high number of users looking for used bikes.

Before you buy this bike, you should view the list of related motorbikes Compare technical specs. Look at photos. And check out the rating of the bike's engine performance, repair costs, etc.


Rating sample for this Honda bike
Design and look for the 2004 Honda XR 650 R:


(84.4 out of 100)

Click here for complete rating. You can also compare bikes.
