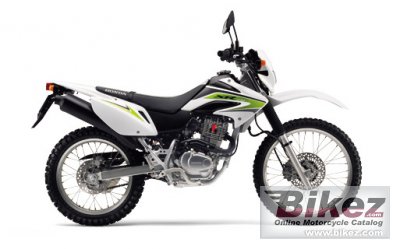

Honda XR230 20112011 Honda XR230 specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Motorcycle name | Honda XR230 |
| Model year | 2011 |
| Category | Enduro / offroad |
| Rating | 3.3 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 223.0 ccm (13.61 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Torque | 18.0 Nm (1.8 kgf-m or 13.3 ft.lbs) @ 5500 RPM |
| Compression | 9.0:1 |
| Bore x stroke | 65.5 x 66.2 mm (2.6 x 2.6 inches) |
| Fuel system | Carburettor. VE3AF |
| Fuel control | Overhead Cams (OHC) |
| Ignition | CDI |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiplate |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 26.0° |
| Trail | 103 mm (4.1 inches) |
| Front suspension | Telescopic fork |
| Front wheel travel | 229 mm (9.0 inches) |
| Rear suspension | Pro-Link swing arm |
| Rear wheel travel | 168 mm (6.6 inches) |
| Front tire | 2.75-21 |
| Rear tire | 120/80-12 |
| Front brakes | Single disc |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 122.0 kg (269.0 pounds) |
| Seat height | 805 mm (31.7 inches) If adjustable, lowest setting. |
| Overall height | 1110 mm (43.7 inches) |
| Overall length | 2080 mm (81.9 inches) |
| Overall width | 825 mm (32.5 inches) |
| Ground clearance | 245 mm (9.6 inches) |
| Wheelbase | 1336 mm (52.6 inches) |
| Fuel capacity | 8.71 litres (2.30 US gallons) |
| Other specifications | |
| Color options | Black/white/green, red/black/green |
| Starter | Electric |
| Comments | Sold in the Asian market |
