06 Honda VTX 1300 R specificationsHonda VTX 1300 R 2006

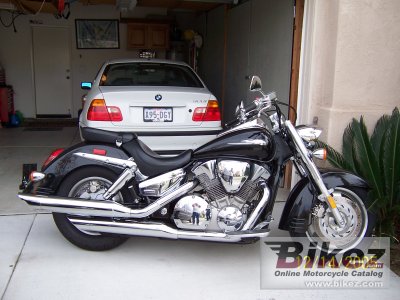

2006 Honda VTX 1300 R photo
William Feit. Click to submit more pictures.
   Show big 2006 Honda VTX 1300 R imageShow more 2006 Honda VTX 1300 R images
2006 Honda VTX 1300 R

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Honda's profilation of this bike
The VTX1300R has everything you would expect in a retro motorcycle. Cast wheels. Dual exhaust with custom-looking short pipes. And crisp tank-mounted instruments and gauges. Not to mention an impressive 1312cc V-twin making it sound as good as it looks.

General information
Model:Honda VTX 1300 R
Year:2006
Category:Custom / cruiser
Rating:76.2 out of 100. Show full rating and compare with other bikes
Price as new (MSRP):US$ 9599. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:1312.00 ccm (80.06 cubic inches)
Engine type:V2, four-stroke
Compression:9.2:1
Bore x stroke:89.5 x 104.3 mm (3.5 x 4.1 inches)
Fuel system:Carburettor. Single 38mm CV
Fuel control:SOHC
Ignition:Digital with three-dimensional mapping, two spark plugs per cylinder
Cooling system:Liquid
Gearbox:5-speed
Transmission type,
final drive:
Shaft drive (cardan)
Chassis, suspension, brakes and wheels
Rake (fork angle):32.0
Trail:144 mm (5.7 inches)
Front suspension:41 mm fork
Front suspension travel:130 mm (5.1 inches)
Rear suspension:Dual shocks with five-position spring-preload adjustability
Rear suspension travel:94 mm (3.7 inches)
Front tyre dimensions:140/80-17
Rear tyre dimensions:170/80-15
Front brakes:Single disc
Front brakes diameter:336 mm (13.2 inches)
Rear brakes:Single disc
Rear brakes diameter:296 mm (11.7 inches)
Physical measures and capacities
Dry weight:303.5 kg (669.0 pounds)
Seat height:695 mm (27.4 inches) If adjustable, lowest setting.
Wheelbase:1,669 mm (65.7 inches)
Fuel capacity:18.16 litres (4.80 gallons)
Other specifications
Starter:Electric
Color options:Black, Bright Blue Metallic, Candy Black Cherry, Metallic Silver
Comments:Model ID: VT1300R
