12 Honda VTX1300R specificationsHonda VTX1300R 2012

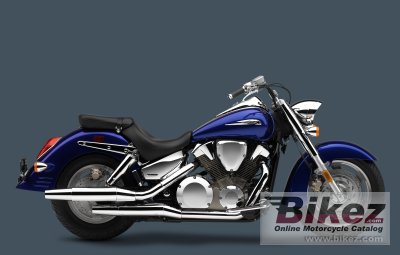

2012 Honda VTX1300R photo
Picture credits - Honda. Click to submit more pictures.
   Show big 2012 Honda VTX1300R imageShow more 2012 Honda VTX1300R images
2012 Honda VTX1300R

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Honda's profilation of this bike
It´s not easy categorizing a motorcycle as classically cool and feature-packed as the VTX1300R, so we like to go with performance-retro. Take a closer look and we think you´ll agree. Check out the burly 1312cc V-twin engine and staggered dual exhaust complete with mandatory throaty growl.

General information
Model:Honda VTX1300R
Year:2012
Category:Custom / cruiser
Rating:74.1 out of 100. Show full rating and compare with other bikes
Price as new (MSRP):US$ 10299. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:1312.00 ccm (80.06 cubic inches)
Engine type:V2, four-stroke
Engine details:52 degree V-twin
Compression:9.2:1
Bore x stroke:89.5 x 104.3 mm (3.5 x 4.1 inches)
Valves per cylinder:3
Fuel system:Carburettor. Single 38mm constant-velocity carburetor
Fuel control:SOHC
Ignition:Digital with three-dimensional mapping, two spark plugs per cylinder
Cooling system:Liquid
Gearbox:5-speed
Transmission type,
final drive:
Shaft drive (cardan)
Emission details:Meets current EPA emissions standards. California version meets current California Air Resources Board (CARB) standards and may differ slightly due to emissions equipment
Chassis, suspension, brakes and wheels
Rake (fork angle):32.0°
Trail:144 mm (5.7 inches)
Front suspension:41mm fork
Front suspension travel:130 mm (5.1 inches)
Rear suspension:Rear: Dual shocks with five-position spring-preload adjustability
Rear suspension travel:94 mm (3.7 inches)
Front tyre dimensions:140/80-17
Rear tyre dimensions:170/80-15
Front brakes:Double disc. Twin-piston caliper
Front brakes diameter:336 mm (13.2 inches)
Rear brakes:Single disc. Twin-piston caliper
Rear brakes diameter:296 mm (11.7 inches)
Physical measures and capacities
Weight incl. oil, gas, etc:322.1 kg (710.0 pounds)
Seat height:696 mm (27.4 inches) If adjustable, lowest setting.
Wheelbase:1,669 mm (65.7 inches)
Fuel capacity:18.17 litres (4.80 gallons)
Other specifications
Factory warranty:One year.
Color options:Metallic Silver, Metallic Black and Bright Blue Metallic
Comments:Model ID: VTX1300R
