| General information |
|---|

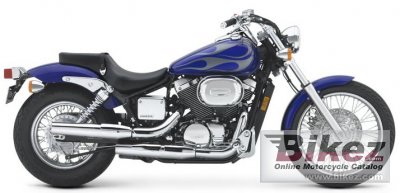

| Model: | Honda Shadow Spirit 750 |
| Year: | 2005 |
| Category: | Custom / cruiser |
| Rating: | 76.1 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 745.00 ccm (45.46 cubic inches) |
| Engine type: | V2 |
| Stroke: | 4 |
| Compression: | 9.0:1 |
| Bore x stroke: | 79.0 x 76.0 mm (3.1 x 3.0 inches) |
| Fuel system: | Carburettor. Two 34mm diaphragm-type CV |
| Fuel control: | SOHC |
| Ignition: | CD with electronic advance, two spark plugs per cylinder |
| Starter: | Electric |
| Cooling system: | Liquid |
| Gearbox: | 5-speed |
Transmission type
final drive: | Chain |
| More details | Consult a Honda repair manual. |
| Physical measures |
|---|
| Dry weight: | 225.0 kg (496.0 pounds) |
| Seat height: | 676 mm (26.6 inches) If adjustable, lowest setting. |
| Wheelbase: | 1,646 mm (64.8 inches) |
| Chassis and dimensions |
|---|
| Rake (fork angle): | 32.7° |
| Trail: | 161 mm (6.3 inches) |
| Front suspension: | 41mm fork |
| Front suspension travel: | 130 mm (5.1 inches) |
| Rear suspension: | Dual shocks with five-position spring-preload adjustability |
| Rear suspension travel: | 81 mm (3.2 inches) |
| Front tyre dimensions: | 110/80-19 |
| Rear tyre dimensions: | 160/80-15 |
| Front brakes: | Single disc. 2-piston calipers. |
| Front brakes diameter: | 296 mm (11.7 inches) |
| Rear brakes: | Expanding brake (drum brake) |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 13.62 litres (3.60 gallons) |
| Color options: | Black, Black/Red Flame, Pearl Blue/Metallic Silver Flame |
| Comments: | Model ID: VT750DC |
