| General information |
|---|

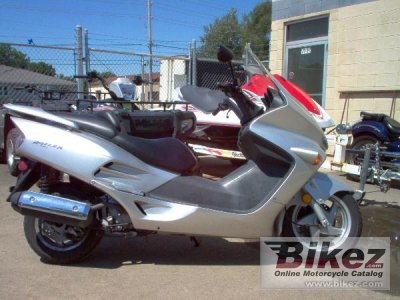

| Model: | Honda Reflex NSS 250 |
| Year: | 2001 |
| Category: | Scooter |
| Rating: | 74.2 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 249.00 ccm (15.19 cubic inches) |
| Engine type: | Single cylinder |
| Stroke: | 4 |
| Fuel system: | Carburettor. CV 30mm |
| Valves per cylinder: | 2 |
| Fuel control: | OHC |
| Starter: | Electric |
| Lubrication system: | Wet sump Forced pressure |
| Cooling system: | Liquid |
Transmission type
final drive: | Belt |
| Clutch: | dry centrifugal |
| Physical measures |
|---|
| Dry weight: | 170.0 kg (374.8 pounds) |
| Weight incl. oil, gas, etc: | 179.0 kg (394.6 pounds) |
| Seat height: | 719 mm (28.3 inches) If adjustable, lowest setting. |
| Overall height: | 1,359 mm (53.5 inches) |
| Overall length: | 2,210 mm (87.0 inches) |
| Overall width: | 759 mm (29.9 inches) |
| Ground clearance: | 130 mm (5.1 inches) |
| Wheelbase: | 1,544 mm (60.8 inches) |
| Chassis and dimensions |
|---|
| Frame type: | Underbone |
| Rake (fork angle): | 27.0° |
| Trail: | 95 mm (3.7 inches) |
| Front suspension: | Telescopic Fork |
| Front suspension travel: | 99 mm (3.9 inches) |
| Rear suspension: | Dual shocks |
| Rear suspension travel: | 97 mm (3.8 inches) |
| Front tyre dimensions: | 110/90-13 |
| Rear tyre dimensions: | 130/70-12 |
| Front brakes: | Single disc. 3 pot calipers |
| Rear brakes: | Single disc. Single pot caliper |
| Speed and acceleration |
|---|
| Top speed: | 132.0 km/h (82.0 mph) |
| Other specifications |
|---|
| Fuel capacity: | 12.00 litres (3.17 gallons) |
| Fuel consumption pr. 10 km (6.2 miles): | 3.61 litres (0.95 gallons) |
| Modifications compared to previous model: | abs brakes available |
