| General information |
|---|

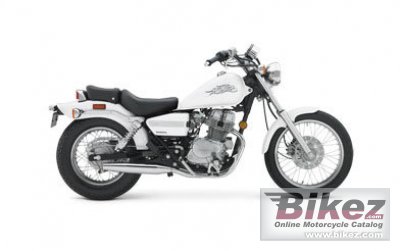

| Model: | Honda Rebel |
| Year: | 2006 |
| Category: | Allround |
| Rating: | 74.1 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 234.00 ccm (14.28 cubic inches) |
| Engine type: | Twin |
| Stroke: | 4 |
| Compression: | 9.2:1 |
| Bore x stroke: | 53.0 x 53.0 mm (2.1 x 2.1 inches) |
| Fuel system: | Carburettor. Single 26mm diaphragm-type CV |
| Valves per cylinder: | 3 |
| Fuel control: | SOHC |
| Ignition: | CD |
| Cooling system: | Air |
| Gearbox: | 5-speed |
Transmission type
final drive: | Chain |
| More details | Consult a Honda repair manual. |
| Physical measures |
|---|
| Dry weight: | 139.0 kg (306.4 pounds) |
| Seat height: | 676 mm (26.6 inches) If adjustable, lowest setting. |
| Wheelbase: | 1,450 mm (57.1 inches) |
| Chassis and dimensions |
|---|
| Rake (fork angle): | 30.0° |
| Trail: | 113 mm (4.4 inches) |
| Front suspension: | 33 mm fork |
| Front suspension travel: | 117 mm (4.6 inches) |
| Rear suspension: | Dual shocks with five-position spring-preload adjustability |
| Rear suspension travel: | 74 mm (2.9 inches) |
| Front tyre dimensions: | 90/90-18 |
| Rear tyre dimensions: | 130/90-15 |
| Front brakes: | Single disc |
| Rear brakes: | Expanding brake (drum brake) |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 9.84 litres (2.60 gallons) |
| Color options: | Black, Pearl White |
| Comments: | Model ID: CMX250C |
