| Honda's profilation of this bike |
| Cosmopolitan styling, comfortable proportions and strong, responsive performance in a sleek and highly economical new scooter. |
| General information |
|---|

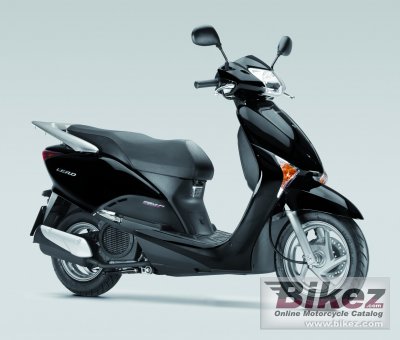

| Model: | Honda Lead | | Year: | 2009 | | Category: | Scooter | | Rating: | 72.5 out of 100. Show full rating and compare with other bikes | | Engine and transmission |
|---|
| Displacement: | 108.00 ccm (6.59 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Power: | 8.85 HP (6.5 kW)) @ 7500 RPM | | Torque: | 9.30 Nm (0.9 kgf-m or 6.9 ft.lbs) @ 6250 RPM | | Compression: | 11.0:1 | | Bore x stroke: | 50.0 x 55.0 mm (2.0 x 2.2 inches) | | Valves per cylinder: | 2 | | Fuel system: | Injection. PGM-FI electronic fuel injection | | Fuel control: | SOHC | | Ignition: | Fully transistorised electronic | | Cooling system: | Liquid | | Gearbox: | Automatic | Transmission type,
final drive: | Belt | | Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | 33mm telescopic fork, 80mm axle travel | | Rear suspension: | Single-damper unit swingarm, 70mm axle travel | | Front tyre dimensions: | 90/90-M12 | | Rear tyre dimensions: | 100/90-M10 | | Front brakes: | Single disc | | Front brakes diameter: | 190 mm (7.5 inches) | | Rear brakes: | Expanding brake (drum brake) | | Rear brakes diameter: | 130 mm (5.1 inches) | | Physical measures and capacities |
|---|
| Dry weight: | 114.0 kg (251.3 pounds) | | Power/weight ratio: | 0.0776 HP/kg | | Seat height: | 740 mm (29.1 inches) If adjustable, lowest setting. | | Overall height: | 1,125 mm (44.3 inches) | | Overall length: | 1,835 mm (72.2 inches) | | Overall width: | 665 mm (26.2 inches) | | Ground clearance: | 105 mm (4.1 inches) | | Wheelbase: | 1,275 mm (50.2 inches) | | Fuel capacity: | 6.50 litres (1.72 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Color options: | Red, white, gray, black | | Further information |
|---|
