| General information |
|---|

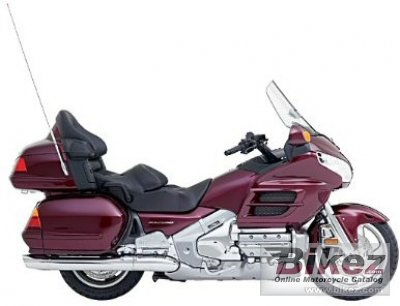

| Model: | Honda GL 1800 Gold Wing |
| Year: | 2005 |
| Category: | Touring |
| Rating: | 77.8 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 1832.00 ccm (111.79 cubic inches) |
| Engine type: | Six cylinder boxer |
| Stroke: | 4 |
| Power: | 118.00 HP (86.1 kW)) @ 5500 RPM |
| Torque: | 167.00 Nm (17.0 kgf-m or 123.2 ft.lbs) @ 4000 RPM |
| Compression: | 9.8:1 |
| Bore x stroke: | 74.0 x 71.0 mm (2.9 x 2.8 inches) |
| Fuel system: | Injection. Programmed Fuel Injection (PGM-FI) with automatic choke |
| Valves per cylinder: | 2 |
| Fuel control: | SOHC |
| Ignition: | Computer-controlled digital with three-dimensional mapping |
| Starter: | Electric |
| Cooling system: | Liquid |
| Gearbox: | 5-speed |
Transmission type
final drive: | Shaft drive (cardan) |
| More details | Consult a Honda repair manual. |
| Physical measures |
|---|
| Dry weight: | 359.2 kg (792.0 pounds) |
| Seat height: | 739 mm (29.1 inches) If adjustable, lowest setting. |
| Wheelbase: | 1,692 mm (66.6 inches) |
| Chassis and dimensions |
|---|
| Rake (fork angle): | 29.3° |
| Trail: | 109 mm (4.3 inches) |
| Front suspension: | 45.0mm cartridge fork with anti-dive system |
| Front suspension travel: | 140 mm (5.5 inches) |
| Rear suspension: | Pro-Arm single-side swingarm with Pro-Link single shock with computer controlled spring-preload adjustment with two memory presets |
| Rear suspension travel: | 104 mm (4.1 inches) |
| Front tyre dimensions: | 130/70-R18 |
| Rear tyre dimensions: | 180/60-R16 |
| Front brakes: | Double disc. LBS 3-piston calipers |
| Front brakes diameter: | 296 mm (11.7 inches) |
| Rear brakes: | Single disc. LBS 3-piston calipers |
| Rear brakes diameter: | 316 mm (12.4 inches) |
| Speed and acceleration |
|---|
| Power/weight ratio: | 0.3285 HP/kg |
| Other specifications |
|---|
| Fuel capacity: | 24.98 litres (6.60 gallons) |
| Color options: | Metallic Silver, Pearl Yellow, Bright Blue Metallic, Candy Black Cherry, Dark Gray Metallic, White |
| Comments: | Model ID: GL1800 |
