| Honda's profilation of this bike |
| Honda’s legendary reliability and dependability. Add it all up, and it’s easy to see why the Ranchers are America’s best-selling ATVs. |
| General information |
|---|

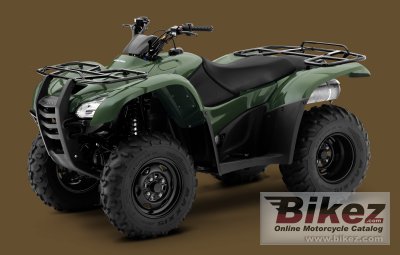

| Model: | Honda FourTrax Rancher | | Year: | 2012 | | Category: | ATV | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Price as new (MSRP): | US$ 5099. Prices depend on country, taxes, accessories, etc. | | Engine and transmission |
|---|
| Displacement: | 420.00 ccm (25.63 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Power: | 563.23 HP (411.1 kW)) | | Compression: | 9.5:1 | | Bore x stroke: | 86.5 x 71.5 mm (3.4 x 2.8 inches) | | Fuel system: | Injection. Keihin 34mm throttle-body fuel-injection system | | Fuel control: | OHV | | Ignition: | Full-transistorized type with electronic advance | | Lubrication system: | Wet sump | | Cooling system: | Liquid | | Gearbox: | 5-speed | Transmission type,
final drive: | Shaft drive (cardan) | | Clutch: | Automatic | | Driveline: | Direct rear driveshaft | | Emission details: | Meets current California Air Resources Board (CARB) and EPA off-road emissions standards. | | Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Independent double-wishbone | | Front suspension travel: | 160 mm (6.3 inches) | | Rear suspension: | Swingarm with single shock | | Rear suspension travel: | 160 mm (6.3 inches) | | Front tyre dimensions: | 24/8-12 | | Rear tyre dimensions: | 24/10-11 | | Front brakes: | Double disc | | Rear brakes: | Expanding brake (drum brake) | | Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 248.1 kg (547.0 pounds) | | Seat height: | 823 mm (32.4 inches) If adjustable, lowest setting. | | Overall height: | 1,146 mm (45.1 inches) | | Overall length: | 2,055 mm (80.9 inches) | | Overall width: | 1,171 mm (46.1 inches) | | Ground clearance: | 165 mm (6.5 inches) | | Wheelbase: | 1,250 mm (49.2 inches) | | Fuel capacity: | 13.25 litres (3.50 gallons) | | Reserve fuel capacity: | 3.79 litres (1.00 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Factory warranty: | One year | | Color options: | Red, Olive | | Comments: | Model ID: TRX420TM | | Further information |
|---|
| Parts and accessories | Our partner CMSNL
ships low cost OEM motorcycle parts to
Australia, Austria, Bahamas, Belgium, Canada, China, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany,
Greece, Hong Kong, Hungary, Iceland, India, Ireland, Italy, Japan, Kuwait, Latvia, Lithuania, Luxembourg, Macedonia, Malta, Montenegro,
The Netherlands, New Zealand, Norway, Poland, Portugal, Serbia, Slovakia, Slovenia, South Africa, Spain, Sweden, Switzerland,
Taiwan, Ukraine, United Kingdom, The United States and more. Or check out parts and accessories from our other partners. |
| Ask questions | Join the 12 Honda FourTrax Rancher discussion group. |
| Insurance, loans, tests
| Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc. |
| Related bikes | List related bikes for comparison of specs |
