| General information |
|---|

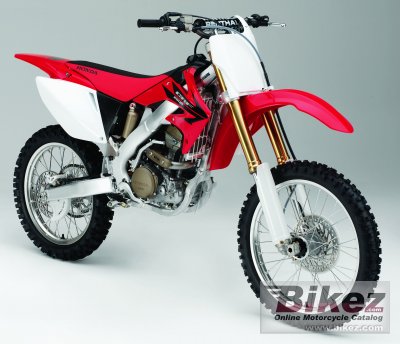

| Model: | Honda CRF 250 R |
| Year: | 2006 |
| Category: | Cross / motocross |
| Rating: | 68.6 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 249.00 ccm (15.19 cubic inches) |
| Engine type: | Single cylinder |
| Stroke: | 4 |
| Compression: | 12.9:1 |
| Bore x stroke: | 78.0 x 52.2 mm (3.1 x 2.1 inches) |
| Fuel system: | Carburettor. Keihin 40.0mm flat-slide with throttle position sensor (TPS) |
| Ignition: | CD with electronic advance |
| Cooling system: | Liquid |
| Gearbox: | 5-speed |
Transmission type
final drive: | Chain |
| Physical measures |
|---|
| Dry weight: | 92.5 kg (204.0 pounds) |
| Seat height: | 965 mm (38.0 inches) If adjustable, lowest setting. |
| Ground clearance: | 361 mm (14.2 inches) |
| Wheelbase: | 1,478 mm (58.2 inches) |
| Chassis and dimensions |
|---|
| Rake (fork angle): | 27.5° |
| Trail: | 123 mm (4.8 inches) |
| Front suspension: | 47mm inverted Showa cartridge fork with 16-position rebound- and 16-position compression-damping adjustability |
| Front suspension travel: | 315 mm (12.4 inches) |
| Rear suspension: | Pro-Link Showa single shock with spring-preload, 17-position rebound-damping adjustability, and compression-damping adjustment separated into low speed (13 positions) and high-speed (3.5 turns) |
| Rear suspension travel: | 315 mm (12.4 inches) |
| Front tyre dimensions: | 80/70-21 |
| Rear tyre dimensions: | 100/90-19 |
| Front brakes: | Single disc |
| Front brakes diameter: | 240 mm (9.4 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 240 mm (9.4 inches) |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 7.57 litres (2.00 gallons) |
| Comments: | Model ID: CRF250R |
