05 Honda CR 125 R specificationsHonda CR 125 R 2005

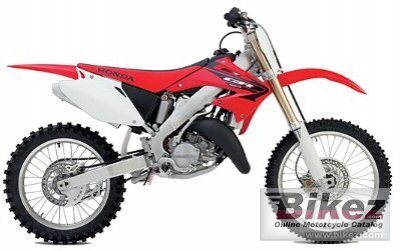

2005 Honda CR 125 R photo
Picture credits - Honda. Click to submit more pictures.
Show more 2005 Honda CR 125 R images
2005 Honda CR 125 R

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Honda's profilation of this bike
Meet the most potent two-stroke in its class: the 2005 CR125R. Like its CR250R big brother, the CR125R gets an all-new engine, retooled, reshaped and re-armed from top to bottom end cylinder, piston, crankshaft, exhaust, the works.

General information
Model:Honda CR 125 R
Year:2005
Category:Cross / motocross
Rating:70.3 out of 100. Show full rating and compare with other bikes
Price as new (MSRP):US$ 5299. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:125.00 ccm (7.63 cubic inches)
Engine type:Single cylinder, two-stroke
Compression:8.6:1
Bore x stroke:54.0 x 54.5 mm (2.1 x 2.1 inches)
Fuel system:Carburettor. 38.0mm Mikuni TMX with throttle position sensor (TPS)
Ignition:Digital ignition with three-dimensional mapping and electronic advance
Cooling system:Liquid
Gearbox:5-speed
Transmission type,
final drive:
Chain
Chassis, suspension, brakes and wheels
Rake (fork angle):25.8
Trail:100 mm (3.9 inches)
Front suspension:46.0mm inverted Kayaba cartridge fork with 18-position rebound and 20-position compression-damping adjustability
Front suspension travel:318 mm (12.5 inches)
Rear suspension:Pro-Link Kayaba single-shock with spring-preload, 30-position rebound-damping adjustability, and compression-damping adjustment separated into low-speed (18 positions) and high-speed (2 turns);
Rear suspension travel:318 mm (12.5 inches)
Front tyre dimensions:80/70-21
Rear tyre dimensions:100/90-19
Front brakes:Single disc. 2-piston calipers
Front brakes diameter:240 mm (9.4 inches)
Rear brakes:Single disc
Rear brakes diameter:240 mm (9.4 inches)
Physical measures and capacities
Dry weight:87.5 kg (192.9 pounds)
Seat height:947 mm (37.3 inches) If adjustable, lowest setting.
Ground clearance:351 mm (13.8 inches)
Wheelbase:1,471 mm (57.9 inches)
Fuel capacity:7.57 litres (2.00 gallons)
Other specifications
Color options:Red
Comments:Model ID: CR125R
