| General information |
|---|

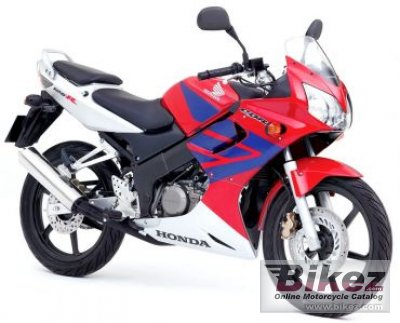

| Model: | Honda CBR 125 R |
| Year: | 2005 |
| Category: | Sport |
| Rating: | 68.6 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 125.00 ccm (7.63 cubic inches) |
| Engine type: | Single cylinder |
| Stroke: | 4 |
| Power: | 13.30 HP (9.7 kW)) @ 10000 RPM |
| Torque: | 10.10 Nm (1.0 kgf-m or 7.4 ft.lbs) @ 8000 RPM |
| Max RPM: | 10750 |
| Compression: | 11.0:1 |
| Bore x stroke: | 58.0 x 47.2 mm (2.3 x 1.9 inches) |
| Fuel system: | Carburettor. VK-Type |
| Valves per cylinder: | 2 |
| Fuel control: | SOHC |
| Ignition: | Capacitor Discharge (CDI) |
| Starter: | Electric |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type
final drive: | Chain |
| Clutch: | Wet, multiplate with coil springs |
| Physical measures |
|---|
| Dry weight: | 115.0 kg (253.5 pounds) |
| Seat height: | 776 mm (30.6 inches) If adjustable, lowest setting. |
| Overall height: | 1,070 mm (42.1 inches) |
| Overall length: | 1,920 mm (75.6 inches) |
| Overall width: | 675 mm (26.6 inches) |
| Ground clearance: | 172 mm (6.8 inches) |
| Wheelbase: | 1,294 mm (50.9 inches) |
| Chassis and dimensions |
|---|
| Frame type: | Diamond, steel twin-spar |
| Rake (fork angle): | 25.0° |
| Trail: | 88 mm (3.5 inches) |
| Front suspension: | 31mm telescopic fork |
| Front suspension travel: | 109 mm (4.3 inches) |
| Rear suspension: | Monoshock damper |
| Rear suspension travel: | 120 mm (4.7 inches) |
| Front tyre dimensions: | 80/90-17 |
| Rear tyre dimensions: | 110/80-17 |
| Front brakes: | Single disc. 2-piston calipers |
| Front brakes diameter: | 276 mm (10.9 inches) |
| Rear brakes: | Single disc. 1-piston caliper |
| Rear brakes diameter: | 220 mm (8.7 inches) |
| Speed and acceleration |
|---|
| Top speed: | 120.0 km/h (74.6 mph) |
| Power/weight ratio: | 0.1157 HP/kg |
| Other specifications |
|---|
| Fuel capacity: | 10.00 litres (2.64 gallons) |
| Fuel consumption pr. 10 km (6.2 miles): | 2.94 litres (0.78 gallons) |
| Color options: | Red and Black, Repsol Replica, Black and Silver, Blue |
| Modifications compared to previous model: | n/a - completely new model |
| Comments: | Very nice learner bike - not sure about america, but available in UK only i think at the moment |
