| General information |
|---|

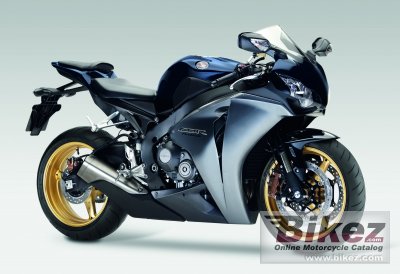

| Model: | Honda CBR1000RR Fireblade ABS |
| Year: | 2009 |
| Category: | Sport |
| Rating: | 77.4 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 999.00 ccm (60.96 cubic inches) |
| Engine type: | In-line four |
| Stroke: | 4 |
| Compression: | 12.3:1 |
| Bore x stroke: | 76.0 x 55.1 mm (3.0 x 2.2 inches) |
| Fuel system: | Injection. Dual Stage Fuel Injection (DSFI) |
| Valves per cylinder: | 4 |
| Fuel control: | DOHC |
| Ignition: | Computer-controlled digital transistorized with three-dimensional mapping |
| Starter: | Electric |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
| Physical measures |
|---|
| Weight incl. oil, gas, etc: | 209.1 kg (461.0 pounds) |
| Seat height: | 820 mm (32.3 inches) If adjustable, lowest setting. |
| Wheelbase: | 1,407 mm (55.4 inches) |
| Chassis and dimensions |
|---|
| Rake (fork angle): | 23.3° |
| Trail: | 96 mm (3.8 inches) |
| Front suspension: | 43mm inverted HMAS cartridge fork with spring preload, rebound and compression damping adjustability |
| Front suspension travel: | 109 mm (4.3 inches) |
| Rear suspension: | Unit Pro-Link HMAS single shock with spring preload rebound and compression-damping adjustability |
| Rear suspension travel: | 137 mm (5.4 inches) |
| Front tyre dimensions: | 120/70-ZR17 |
| Rear tyre dimensions: | 190/55-ZR17 |
| Front brakes: | Double disc. ABS |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc. ABS |
| Rear brakes diameter: | 220 mm (8.7 inches) |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 17.78 litres (4.70 gallons) |
| Reserve fuel capacity: | 4.01 litres (1.06 gallons) |
| Color options: | Red |
| Comments: | Model ID: CBR10RA |
