| General information |
|---|

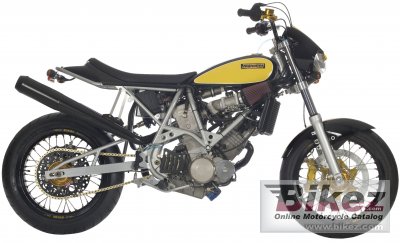

| Model: | Highland DirtTrac |
| Year: | 2006 |
| Category: | Super motard |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 749.00 ccm (45.70 cubic inches) |
| Engine type: | V2 |
| Stroke: | 4 |
| Power: | 83.81 HP (61.2 kW)) @ 7000 RPM |
| Torque: | 84.00 Nm (8.6 kgf-m or 62.0 ft.lbs) @ 5000 RPM |
| Compression: | 11.5:1 |
| Bore x stroke: | 95.0 x 53.0 mm (3.7 x 2.1 inches) |
| Fuel system: | Injection. Highland integrated engine management system with ignition coils fitted directly on the spark plugs |
| Valves per cylinder: | 4 |
| Fuel control: | DOHC |
| Starter: | Electric |
| Lubrication system: | Wet sump |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type
final drive: | Chain |
| Physical measures |
|---|
| Dry weight: | 129.0 kg (284.4 pounds) |
| Seat height: | 720 mm (28.3 inches) If adjustable, lowest setting. |
| Wheelbase: | 1,400 mm (55.1 inches) |
| Chassis and dimensions |
|---|
| Frame type: | Rectangular section, CrMo steel and aluminum (7021-T6) swing arm |
| Rake (fork angle): | 25.0° |
| Front suspension: | Showa |
| Rear suspension: | Pensky |
| Front tyre dimensions: | 120/70-17 |
| Rear tyre dimensions: | 160/60-17 |
| Front brakes: | Single disc. Bremo |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc. Bremo |
| Rear brakes diameter: | 260 mm (10.2 inches) |
| Speed and acceleration |
|---|
| Top speed: | 200.0 km/h (124.3 mph) |
| Power/weight ratio: | 0.6497 HP/kg |
| Other specifications |
|---|
| Fuel capacity: | 8.50 litres (2.25 gallons) |
