| General information |
|---|

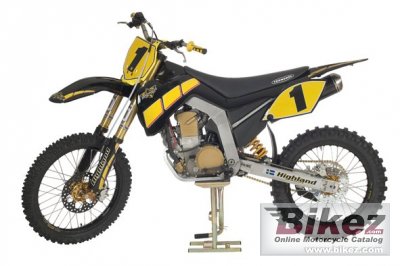

| Model: | Highland 450 MX |
| Year: | 2009 |
| Category: | Cross / motocross |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 449.00 ccm (27.40 cubic inches) |
| Engine type: | Single cylinder |
| Stroke: | 4 |
| Power: | 56.40 HP (41.2 kW)) @ 8500 RPM |
| Torque: | 51.10 Nm (5.2 kgf-m or 37.7 ft.lbs) @ 7300 RPM |
| Compression: | 12.2:1 |
| Bore x stroke: | 96.0 x 62.1 mm (3.8 x 2.4 inches) |
| Fuel system: | Injection |
| Valves per cylinder: | 4 |
| Fuel control: | DOHC |
| Ignition: | Highland integrated engine management system with ignition coil fitted directly on the spark plug |
| Starter: | Electric |
| Lubrication system: | Wet sump, filter, pressure lubricated crankshaft and gearbox |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type
final drive: | Chain |
| Clutch: | Lubricated multi disk |
| Physical measures |
|---|
| Dry weight: | 103.0 kg (227.1 pounds) |
| Seat height: | 998 mm (39.3 inches) If adjustable, lowest setting. |
| Ground clearance: | 350 mm (13.8 inches) |
| Wheelbase: | 1,485 mm (58.5 inches) |
| Chassis and dimensions |
|---|
| Frame type: | Hy-Tens. VTS OUTOKUMPU Stailnless steel |
| Front suspension: | Öhlins/Marzocchi |
| Rear suspension: | Öhlins |
| Front brakes: | Single disc. Brembo double piston floating caliper |
| Front brakes diameter: | 260 mm (10.2 inches) |
| Rear brakes: | Single disc. Brembo floating caliper |
| Rear brakes diameter: | 220 mm (8.7 inches) |
| Speed and acceleration |
|---|
| Power/weight ratio: | 0.5476 HP/kg |
| Other specifications |
|---|
| Fuel capacity: | 7.00 litres (1.85 gallons) |
