| General information |
|---|

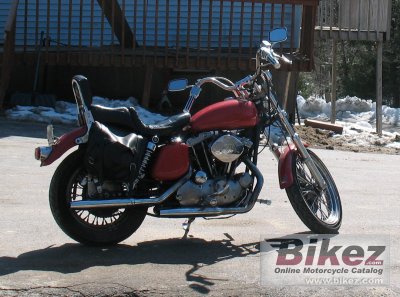

| Model: | Harley-Davidson XLH 1000 Sportster |
| Year: | 1977 |
| Category: | Custom / cruiser |
| Rating: | 48.6 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 997.00 ccm (60.84 cubic inches) |
| Engine type: | V2 |
| Stroke: | 4 |
| Power: | 57.00 HP (41.6 kW)) @ 6000 RPM |
| Compression: | 9.0:1 |
| Bore x stroke: | 81.0 x 96.8 mm (3.2 x 3.8 inches) |
| Valves per cylinder: | 2 |
| Fuel control: | OHV |
| Cooling system: | Air |
| Gearbox: | 4-speed |
Transmission type
final drive: | Chain |
| More details | Consult a Harley-Davidson repair manual. |
| Physical measures |
|---|
| Weight incl. oil, gas, etc: | 240.0 kg (529.1 pounds) |
| Chassis and dimensions |
|---|
| Front tyre dimensions: | 3.75-19 |
| Rear tyre dimensions: | 4.25-18 |
| Front brakes: | Single disc |
| Rear brakes: | Expanding brake |
| Speed and acceleration |
|---|
| Top speed: | 180.0 km/h (111.8 mph) |
| Other specifications |
|---|
| Fuel capacity: | 9.00 litres (2.38 gallons) |
