Harley-Davidson XLCR 1000 Cafe Racer 19771977 Harley-Davidson XLCR 1000 Cafe Racer specifications, pictures, reviews and rating |

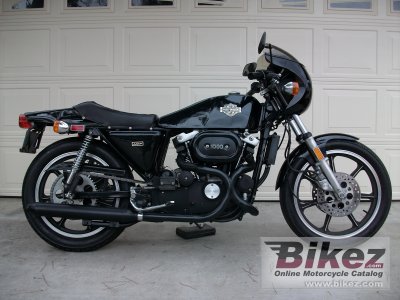

1977 Harley-Davidson XLCR 1000 Cafe Racer. ericx.
| General information | |
|---|---|
| Model name | Harley-Davidson XLCR 1000 Cafe Racer |
| Year model | 1977 |
| Type | Sport |
| Rating | 2.9 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 1000.0 ccm (61.02 cubic inches) |
| Type of engine | V2, four-stroke |
| Effect | 61.0 HP (44.5 kW)) @ 6200 RPM |
| Torque | 70.5 Nm (7.2 kgf-m or 52.0 ft.lbs) @ 3800 RPM |
| Maximum RPM | 6800 |
| Compression | 9.0:1 |
| Bore x stroke | 81.0 x 96.0 mm (3.2 x 3.8 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor. Keihin |
| Fuel control | Overhead Valves (OHV) |
| Lubrication system | dry sump |
| Cooling system | Oil & air |
| Gearbox | 4-speed |
| Transmission type | Chain (final drive) |
| Clutch | wet plate |
| Exhaust system | double with siamise primary |
| Chassis, suspension, brakes and wheels | |
| Frame type | steel tube |
| Rake (fork angle) | 30.0° |
| Front tire | MM90-19 |
| Rear tire | 4,25-18 |
| Front brakes | Double disc |
| Diameter | 254 mm (10.0 inches) |
| Rear brakes | Single disc |
| Diameter | 254 mm (10.0 inches) |
| Physical measures and capacities | |
| Overall height | 1016 mm (40.0 inches) |
| Overall length | 2210 mm (87.0 inches) |
| Overall width | 889 mm (35.0 inches) |
| Ground clearance | 178 mm (7.0 inches) |
| Wheelbase | 1473 mm (58.0 inches) |
| Other specifications | |
| Color options | black |
| Starter | Electric |
| Comments | manufactured 1200 pcs |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 77 Harley-Davidson XLCR 1000 Cafe Racer discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 1977 Harley-Davidson XLCR 1000 Cafe Racer discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this Harley-Davidson bike | |
Value for money for the 1977 Harley-Davidson XLCR 1000 Cafe Racer:  (65.3 out of 100)Click here for complete rating. |
|
