06 Harley-Davidson XL 883C Sportster 883 Custom specificationsHarley-Davidson XL 883C Sportster 883 Custom 2006

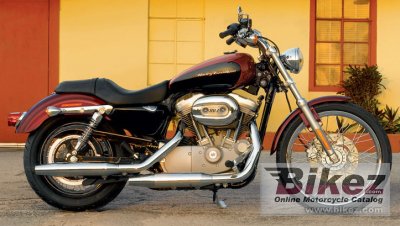

2006 Harley-Davidson XL 883C Sportster 883 Custom photo
Picture credits - Harley-Davidson. Click to submit more pictures.
   Show big 2006 Harley-Davidson XL 883C Sportster 883 Custom image
2006 Harley-Davidson XL 883C Sportster 883 Custom

Discuss this bike
Rate this motorbike
This bike's rating
1 review available
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Harley-Davidson's profilation of this bike
The only thing better than a street-eater is a custom street-eater, like the Sportster® 883 Custom you see here. We begin by giving it the smooth-operating, rubber-mounted Evolution® engine and 4.5-gallon tank. Then we go to work from there. We raise the handlebar, lower the suspension, and give it easy-to-reach forward foot controls.

General information
Model:Harley-Davidson XL 883C Sportster 883 Custom
Year:2006
Category:Custom / cruiser
Rating:79.2 out of 100. Show full rating and compare with other bikes
Price as new (MSRP):US$ 7695. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:882.66 ccm (53.86 cubic inches)
Engine type:V2, four-stroke
Torque:69.15 Nm (7.1 kgf-m or 51.0 ft.lbs) @ 4300 RPM
Compression:8.9:1
Bore x stroke:76.2 x 96.8 mm (3.0 x 3.8 inches)
Valves per cylinder:2
Fuel system:Carburettor
Cooling system:Air
Gearbox:5-speed
Transmission type,
final drive:
Belt
Clutch:Multi-plate clutch with diaphragm spring in oil bath
Fuel consumption:4.43 litres/100 km (22.6 km/l or 53.10 mpg)
Greenhouse gases:102.8 CO2 g/km. (CO2 - Carbon dioxide emission)
Exhaust system:Chrome, staggered shorty duals
Chassis, suspension, brakes and wheels
Rake (fork angle):30.1°
Trail:119 mm (4.7 inches)
Front tyre dimensions:MH90-21
Rear tyre dimensions:150/80-16
Front brakes:Single disc
Front brakes diameter:292 mm (11.5 inches)
Rear brakes:Single disc
Rear brakes diameter:292 mm (11.5 inches)
Physical measures and capacities
Dry weight:253.1 kg (558.0 pounds)
Weight incl. oil, gas, etc:262.6 kg (579.0 pounds)
Seat height:673 mm (26.5 inches) If adjustable, lowest setting.
Overall length:2,289 mm (90.1 inches)
Ground clearance:112 mm (4.4 inches)
Wheelbase:1,547 mm (60.9 inches)
Fuel capacity:17.03 litres (4.50 gallons)
Other specifications
Color options:Vivid black, brilliant silver, black pearl, fire red pearl, glacier white pearl, rich sunglo blue, two-tone rich sunglo blue and chopper blue, two-tone chopper blue and brilliant silver, two-tone fire red pearl and vivid black
Comments:4.5-gallon fuel tank. Significantly reduced clutch lever effort. Forward foot controls. One-piece, two-up seat. Chrome pullback riser.
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 06 Harley-Davidson XL 883C Sportster 883 Custom discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Discussions for every bike

Bikez has discussion forums for every bike. View comments, questions and answers at the 2006 Harley-Davidson XL 883C Sportster 883 Custom discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review.

If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.


Rating sample for this Harley-Davidson bike
Value for money for the 2006 Harley-Davidson XL 883C Sportster 883 Custom:


(83.0 out of 100)

Click here for complete rating. You can also compare bikes.
