09 Harley-Davidson XL 883 Sportster 883 specificationsHarley-Davidson XL 883 Sportster 883 2009

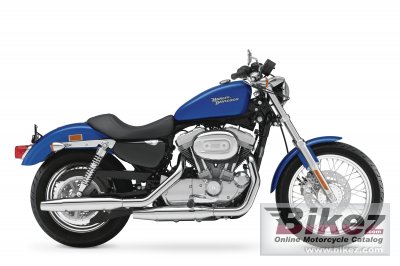

2009 Harley-Davidson XL 883 Sportster 883 photo
Picture credits - Harley-Davidson. Click to submit more pictures.
   Show big 2009 Harley-Davidson XL 883 Sportster 883 image
2009 Harley-Davidson XL 883 Sportster 883

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Harley-Davidson's profilation of this bike
The Sportster® XL 883 is a bare-essentials bike that’s easy to handle but with all the classic features of a raw Harley motorcycle. Short exhaust, solo seat, peanut fuel tank and isolation-mounted Evolution™ engine.

General information
Model:Harley-Davidson XL 883 Sportster 883
Year:2009
Category:Custom / cruiser
Rating:66 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:883.00 ccm (53.88 cubic inches)
Engine type:V2, four-stroke
Torque:70.00 Nm (7.1 kgf-m or 51.6 ft.lbs) @ 3750 RPM
Compression:8.9:1
Bore x stroke:76.2 x 96.8 mm (3.0 x 3.8 inches)
Fuel system:Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Cooling system:Air
Gearbox:5-speed
Transmission type,
final drive:
Belt
Clutch:9-plate, wet
Exhaust system:Chrome, staggered shorty exhaust with dual mufflers
Chassis, suspension, brakes and wheels
Frame type:Mild steel tubular frame; circular sections; cast junctions
Rake (fork angle):30.0°
Trail:117 mm (4.6 inches)
Front suspension:39mm fork
Front suspension travel:105 mm (4.1 inches)
Rear suspension:Coil-over; preload dual-adjustable
Front tyre dimensions:100/90-19
Rear tyre dimensions:150/80-16
Front brakes:Single disc. 2-piston calipers
Front brakes diameter:292 mm (11.5 inches)
Rear brakes:Single disc. Single piston
Rear brakes diameter:292 mm (11.5 inches)
Physical measures and capacities
Dry weight:251.0 kg (553.4 pounds)
Seat height:693 mm (27.3 inches) If adjustable, lowest setting.
Overall length:2,260 mm (89.0 inches)
Ground clearance:141 mm (5.6 inches)
Wheelbase:1,520 mm (59.8 inches)
Fuel capacity:12.50 litres (3.30 gallons)
Other specifications
Starter:Electric
Color options:Vivid Black, Flame Blue Pearl
Comments:Silver powder-coated engine with polished treatment covers; Polished headlamp visor; Black riser; Mid-mounted rider footpegs; Stainless steel, low-rise handlebar; One-piece, solo Sportster® classic seat; Chrome trim ring with black body headlamp; Chrome riser; Mid-mounted rider footpegs; Standard passenger footpegs; Stainless steel, pull-back handlebars; One-piece, two-up Sportster® classic seat; Low-profile front forks;
Modifications compared to previous model:New low-profile front fender; New rear shocks for improved ride quality.
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 09 Harley-Davidson XL 883 Sportster 883 discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Sell or buy used bikes?

Bikez.biz has an efficient motorcycle classifieds. Ads are free. Click here to sell a used 2009 Harley-Davidson XL 883 Sportster 883 or advertise any other MC for sale. You can list all 2009 Harley-Davidson XL 883 Sportster 883 available and also sign up for e-mail notification when such bikes are advertised in the future. Bikez has a high number of users looking for used bikes.

Before you buy this bike, you should view the list of related motorbikes Compare technical specs. Look at photos. And check out the rating of the bike's engine performance, repair costs, etc.


Rating sample for this Harley-Davidson bike
Offroad capabilities for the 2009 Harley-Davidson XL 883 Sportster 883:


(26.3 out of 100)

Click here for complete rating. You can also compare bikes.
