11 Harley-Davidson XL 1200X Forty-Eight specificationsHarley-Davidson XL 1200X Forty-Eight 2011

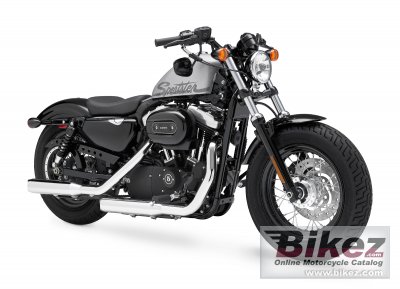

2011 Harley-Davidson XL 1200X Forty-Eight photo
Picture credits - Harley-Davidson. Click to submit more pictures.
   Show big 2011 Harley-Davidson XL 1200X Forty-Eight imageShow more 2011 Harley-Davidson XL 1200X Forty-Eight images
2011 Harley-Davidson XL 1200X Forty-Eight

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Harley-Davidson's profilation of this bike
Custom touches define this bulldog of a bike. A slammed speedometer, under bar mounted mirrors and 26-inch seat height offer a low profile, while the peanut tank and big 16-inch wheels combine for a menacing look that could only come from Harley-Davidson.

General information
Model:Harley-Davidson XL 1200X Forty-Eight
Year:2011
Category:Custom / cruiser
Rating:63.5 out of 100. Show full rating and compare with other bikes
Price as new (MSRP):US$ 10499. Euro 10395. UK 7890. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:1201.25 ccm (73.30 cubic inches)
Engine type:V2, four-stroke
Engine details:Air-cooled Evolution engine. Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters.
Torque:107.00 Nm (10.9 kgf-m or 78.9 ft.lbs) @ 4000 RPM
Compression:9.7:1
Bore x stroke:88.9 x 96.8 mm (3.5 x 3.8 inches)
Valves per cylinder:2
Fuel system:Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Fuel control:OHV
Lubrication system:Dry-sump
Cooling system:Air
Gearbox:5-speed
Transmission type,
final drive:
Belt
Clutch:Multi-plate, wet
Driveline:Primary Drive Chain, 57/38 ratio. Final Drive Belt, 68/29 ratio.
Fuel consumption:4.75 litres/100 km (21.1 km/l or 49.52 mpg)
Greenhouse gases:110.2 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis, suspension, brakes and wheels
Frame type:Mild steel, tubular frame; circular sections; cast junctions
Rake (fork angle):30.0
Trail:145 mm (5.7 inches)
Front suspension:39 mm fork
Front suspension travel:92 mm (3.6 inches)
Rear suspension:Coil-over, preload dual-adjustable.
Rear suspension travel:41 mm (1.6 inches)
Front tyre dimensions:MT90-B16
Rear tyre dimensions:150/80-B16
Front brakes:Single disc. Dual-piston.
Front brakes diameter:292 mm (11.5 inches)
Rear brakes:Single disc. Single-piston.
Rear brakes diameter:260 mm (10.2 inches)
Wheels:Black, Laced Steel
Physical measures and capacities
Seat height:660 mm (26.0 inches) If adjustable, lowest setting.
Overall height:1,067 mm (42.0 inches)
Overall length:2,250 mm (88.6 inches)
Overall width:831 mm (32.7 inches)
Ground clearance:99 mm (3.9 inches)
Wheelbase:1,519 mm (59.8 inches)
Fuel capacity:7.95 litres (2.10 gallons)
Oil capacity:2.80 litres (0.18 quarts)
Other specifications
Starter:Electric
Instruments:Handlebar-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lightsHandlebar-mounted electronic speedometer with odometer,
Light:55-watt low beam, 60-watt high beam
Electrical:Sealed lead acid, maintenance-free batery, 12V, 12 amp/hour, 200 cca. 30-amp, permanent magnet, single-phase alternator with solid-state regulator.
Factory warranty:24 months, unlimited mileage. (US)
Color options:Vivid Black, Brilliant Silver Pearl, Sedona Orange
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 11 Harley-Davidson XL 1200X Forty-Eight discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Sell or buy used bikes?

Bikez.biz has an efficient motorcycle classifieds. Ads are free. Click here to sell a used 2011 Harley-Davidson XL 1200X Forty-Eight or advertise any other MC for sale. You can list all 2011 Harley-Davidson XL 1200X Forty-Eight available and also sign up for e-mail notification when such bikes are advertised in the future. Bikez has a high number of users looking for used bikes.

Before you buy this bike, you should view the list of related motorbikes Compare technical specs. Look at photos. And check out the rating of the bike's engine performance, repair costs, etc.


Rating sample for this Harley-Davidson bike
Reliability for the 2011 Harley-Davidson XL 1200X Forty-Eight:


(82.2 out of 100)
