Harley-Davidson XL 1200L Sportster 1200 Low 2009

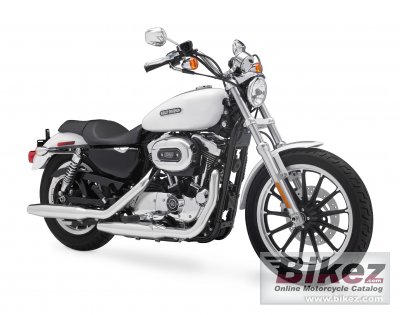

2009 Harley-Davidson XL 1200L Sportster 1200 Low photo

Picture credits - Harley-Davidson. Click to submit more pictures.

2009 Harley-Davidson XL 1200L Sportster 1200 Low

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes

Harley-Davidson's profilation of this bike

Offering a blend of style, performance, agility and easy-to-handle ergonomics, the 1200 Low adds a recalibrated suspension and tyre-hugging front fender for 2009.

General information
Model:	Harley-Davidson XL 1200L Sportster 1200 Low
Year:	2009
Category:	Custom / cruiser
Rating:	64.7 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:	1202.00 ccm (73.35 cubic inches)
Engine type:	V2, four-stroke
Torque:	98.00 Nm (10.0 kgf-m or 72.3 ft.lbs) @ 3200 RPM
Compression:	9.7:1
Bore x stroke:	88.9 x 96.8 mm (3.5 x 3.8 inches)
Fuel system:	Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Cooling system:	Air
Gearbox:	5-speed
Transmission type, final drive:	Belt
Clutch:	9-plate, wet
Exhaust system:	Chrome, staggered shorty exhaust with dual mufflers
Chassis, suspension, brakes and wheels
Frame type:	Mild steel tubular frame; circular sections; cast junctions. Swingarm: Mild steel, rectangular tube sections, stamped junctions; MIG welded
Rake (fork angle):	30.0°
Trail:	119 mm (4.7 inches)
Front suspension:	39 mm fork
Front suspension travel:	105 mm (4.1 inches)
Rear suspension:	Coil-over; preload dual-adjustable
Rear suspension travel:	54 mm (2.1 inches)
Front tyre dimensions:	100/90-19
Rear tyre dimensions:	150/80-16
Front brakes:	Single disc. 2-piston calipers
Front brakes diameter:	292 mm (11.5 inches)
Rear brakes:	Single disc. Single piston
Rear brakes diameter:	292 mm (11.5 inches)
Physical measures and capacities
Dry weight:	251.0 kg (553.4 pounds)
Seat height:	668 mm (26.3 inches) If adjustable, lowest setting.
Overall length:	2,250 mm (88.6 inches)
Ground clearance:	112 mm (4.4 inches)
Wheelbase:	1,515 mm (59.6 inches)
Fuel capacity:	17.00 litres (4.49 gallons)
Other specifications
Color options:	Vivid Black, Dark Blue Pearl, Flame Blue Pearl, Red Hot Sunglo, White Gold Pearl and Pewter Pearl.
Comments:	Black powder-coated engine with chrome covers; Chrome headlamp visor; Chrome trim ring with black body headlamp; Chrome riser; Mid-mounted rider footpegs; Standard passenger footpegs; Stainless steel, pull-back handlebars; One-piece, two-up Sportster® classic seat; Low-profile front forks;
Modifications compared to previous model:	New lowprofile rear shocks for improved ride quality; New low-profile front fender
