| General information |
|---|

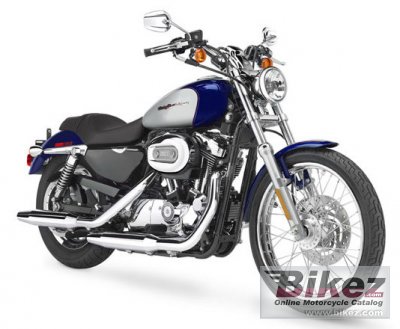

| Model: | Harley-Davidson XL 1200C Sportster 1200 Custom |
| Year: | 2006 |
| Category: | Custom / cruiser |
| Rating: | 69 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 1199.61 ccm (73.20 cubic inches) |
| Engine type: | V2 |
| Stroke: | 4 |
| Torque: | 107.12 Nm (10.9 kgf-m or 79.0 ft.lbs) @ 3500 RPM |
| Compression: | 9.7:1 |
| Bore x stroke: | 88.9 x 96.8 mm (3.5 x 3.8 inches) |
| Fuel system: | Carburettor |
| Gearbox: | 5-speed |
Transmission type
final drive: | Belt |
| Clutch: | Multi-plate clutch with diaphragm spring in oil bath |
| Physical measures |
|---|
| Dry weight: | 251.3 kg (554.0 pounds) |
| Weight incl. oil, gas, etc: | 260.8 kg (575.0 pounds) |
| Overall length: | 2,294 mm (90.3 inches) |
| Ground clearance: | 112 mm (4.4 inches) |
| Wheelbase: | 1,534 mm (60.4 inches) |
| Chassis and dimensions |
|---|
| Rake (fork angle): | 30.1° |
| Trail: | 119 mm (4.7 inches) |
| Front tyre dimensions: | MH90-21 |
| Rear tyre dimensions: | 150/80-B16 |
| Front brakes: | Single disc |
| Rear brakes: | Single disc |
| Exhaust system: | Chrome, staggered shorty duals |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 17.03 litres (4.50 gallons) |
| Fuel consumption pr. 10 km (6.2 miles): | 48.00 litres (12.68 gallons) |
| Color options: | Vivid black, brilliant silver, black cherry, chopper blue, fire red pearl, deep cobalt, glacier white pearl, rich sunglo blue, yellow pearl, two-tone chopper blue and brilliant silver, two-tone black cherry and black pearl, two-tone fire red pearl and viv |
| Comments: | 4.5-gallon fuel tank with stainless steel console. Significantly reduced clutch lever effort. Forward foot controls. High-compression, high-flow cylinder heads. Chrome pullback riser.
|
