| General information |
|---|

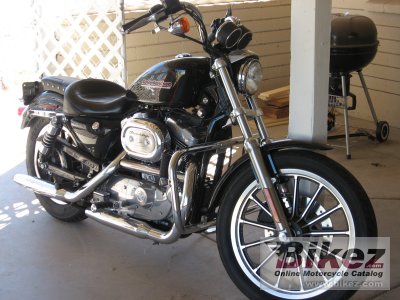

| Model: | Harley-Davidson XL 1200 S Sportster 1200 Sport |
| Year: | 2002 |
| Category: | Custom / cruiser |
| Rating: | 69.7 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 1199.00 ccm (73.16 cubic inches) |
| Engine type: | V2 |
| Stroke: | 4 |
| Torque: | 96.00 Nm (9.8 kgf-m or 70.8 ft.lbs) @ 3000 RPM |
| Compression: | 10.0:1 |
| Bore x stroke: | 88.8 x 96.8 mm (3.5 x 3.8 inches) |
| Fuel system: | Carburettor |
| Cooling system: | Air |
Transmission type final drive: | Belt |
| More details | Consult a Harley-Davidson repair manual. |
| Physical measures |
|---|
| Dry weight: | 240.0 kg (529.1 pounds) |
| Seat height: | 711 mm (28.0 inches) If adjustable, lowest setting. |
| Overall length: | 2,250 mm (88.6 inches) |
| Ground clearance: | 170 mm (6.7 inches) |
| Wheelbase: | 1,515 mm (59.6 inches) |
| Chassis and dimensions |
|---|
| Front brakes: | Dual disc |
| Front brakes diameter: | 292 mm (11.5 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 292 mm (11.5 inches) |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 12.50 litres (3.30 gallons) |
| Reserve fuel capacity: | 1.90 litres (0.50 gallons) |
