12 Harley-Davidson XL883R Sportster 883 R Roadster specificationsHarley-Davidson XL883R Sportster 883 R Roadster 2012

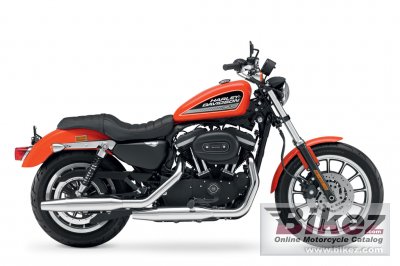

2012 Harley-Davidson XL883R Sportster 883 R Roadster photo
Picture credits - Harley-Davidson. Click to submit more pictures.
   Show big 2012 Harley-Davidson XL883R Sportster 883 R Roadster imageShow more 2012 Harley-Davidson XL883R Sportster 883 R Roadster images
2012 Harley-Davidson XL883R Sportster 883 R Roadster

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Harley-Davidson's profilation of this bike
Bolted onto the 883 Roadster is a classic, tapered peanut style fuel tank with exclusive Harley-Davidson® racing graphic. The traditional peanut styling combined with race-inspired checkered flag detail gives the bike a cool, old school Sportster® look.

General information
Model:Harley-Davidson XL883R Sportster 883 R Roadster
Year:2012
Category:Custom / cruiser
Rating:60.3 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:883.00 ccm (53.88 cubic inches)
Engine type:V2, four-stroke
Engine details:Air-cooled, Evolution®. Silver, powder-coated engine with polished covers.
Torque:70.00 Nm (7.1 kgf-m or 51.6 ft.lbs) @ 3750 RPM
Compression:9.0:1
Bore x stroke:76.2 x 96.8 mm (3.0 x 3.8 inches)
Fuel system:Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication system:Dry-sump
Cooling system:Air
Gearbox:5-speed
Transmission type,
final drive:
Belt
Clutch:9-plate, wet
Driveline:Belt, 28/68 ratio. Primary drive: Chain, 34/57 ratio.
Exhaust system:Chrome, staggered shorty exhaust with dual mufflers
Chassis, suspension, brakes and wheels
Frame type:Mild steel tubular frame; circular sections; cast junctions
Rake (fork angle):30.0°
Front suspension:39mm
Front suspension travel:141 mm (5.6 inches)
Rear suspension:Coil-over
Rear suspension travel:104 mm (4.1 inches)
Front tyre dimensions:100/90-19
Rear tyre dimensions:150/80-16
Front brakes:Single disc. Dual-piston
Front brakes diameter:292 mm (11.5 inches)
Rear brakes:Single disc. Single-piston
Rear brakes diameter:260 mm (10.2 inches)
Wheels:Tyres
Physical measures and capacities
Dry weight:251.0 kg (553.4 pounds)
Weight incl. oil, gas, etc:255.4 kg (563.0 pounds)
Seat height:760 mm (29.9 inches) If adjustable, lowest setting.
Overall length:2,245 mm (88.4 inches)
Ground clearance:141 mm (5.6 inches)
Wheelbase:1,520 mm (59.8 inches)
Fuel capacity:12.50 litres (3.30 gallons)
Oil capacity:2.60 litres (0.17 quarts)
Other specifications
Starter:Electric
Instruments:Handlebars-mounted electronic speedometer with odometer;
Electrical:Sealed lead acid battery, maintenance-free, 12V, 12 amp/hour, 200 cca.
Color options:Vivid Black, Brilliant Silver Pearl, Mirage Orange Pearl
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 12 Harley-Davidson XL883R Sportster 883 R Roadster discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Free motorcycle classifieds

Click here to sell a used 2012 Harley-Davidson XL883R Sportster 883 R Roadster or advertise any other MC for sale. You can list all available Harley-Davidson XL883R Sportster 883 R Roadster bikes and also sign up for e-mail notification when such motorcycles are advertised in the future. Ads with or without pictures are easy to create. Our classifieds are completely free with sections for every country in the world.

You can also check out our list of related motorbikes. Compare technical data. Look at photos. View your fellow riders' rating of the bike's reliability, design, engine performance, accident risk, repair cost, etc.


Rating sample for this Harley-Davidson bike
Reliability for the 2012 Harley-Davidson XL883R Sportster 883 R Roadster:


(67.0 out of 100)

Click here for complete rating. You can also compare bikes.
