| General information |
|---|

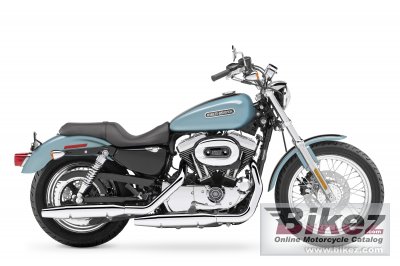

| Model: | Harley-Davidson XL1200L Sportster Low |
| Year: | 2007 |
| Category: | Custom / cruiser |
| Rating: | 64.1 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 1199.61 ccm (73.20 cubic inches) |
| Engine type: | V2 |
| Stroke: | 4 |
| Torque: | 107.25 Nm (10.9 kgf-m or 79.1 ft.lbs) @ 4000 RPM |
| Compression: | 9.7:1 |
| Bore x stroke: | 88.9 x 96.8 mm (3.5 x 3.8 inches) |
| Fuel system: | Injection |
| Starter: | Electric |
| Cooling system: | Air |
| Gearbox: | 5-speed |
Transmission type
final drive: | Belt |
| Clutch: | Multi-plate with diaphragm spring in oil bath |
| More details | Consult a Harley-Davidson repair manual. |
| Physical measures |
|---|
| Dry weight: | 252.7 kg (557.0 pounds) |
| Weight incl. oil, gas, etc: | 263.5 kg (581.0 pounds) |
| Seat height: | 711 mm (28.0 inches) If adjustable, lowest setting. |
| Overall length: | 2,263 mm (89.1 inches) |
| Ground clearance: | 112 mm (4.4 inches) |
| Wheelbase: | 1,516 mm (59.7 inches) |
| Chassis and dimensions |
|---|
| Rake (fork angle): | 29.6° |
| Front tyre dimensions: | 100/90-H19 |
| Rear tyre dimensions: | 150/80-B16 |
| Front brakes: | Single disc. Dual-piston |
| Rear brakes: | Single disc. Single-piston |
| Exhaust system: | Chrome, staggered shorty duals |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 17.03 litres (4.50 gallons) |
| Fuel consumption pr. 10 km (6.2 miles): | 4.11 litres (1.09 gallons) |
| Color options: | Vivid black, black cherry pearl, deep cobalt pearl, yellow pearl, white gold pearl (new), two-tone suede blue pearl and vivid black (new), two-tone olive pearl and vivid black (new), two-tone white gold pearl and vivid black (new) |
| Comments: | Evolution engine. |
