12 Harley-Davidson VRSCF V-Rod Muscle specificationsHarley-Davidson VRSCF V-Rod Muscle 2012

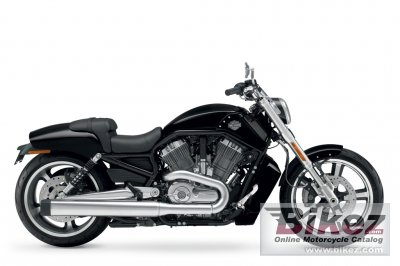

2012 Harley-Davidson VRSCF V-Rod Muscle photo
Picture credits - Harley-Davidson. Click to submit more pictures.
   Show big 2012 Harley-Davidson VRSCF V-Rod Muscle imageShow more 2012 Harley-Davidson VRSCF V-Rod Muscle images
2012 Harley-Davidson VRSCF V-Rod Muscle

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Harley-Davidson's profilation of this bike
The triple gauge cluster reflects Harley-Davidson´s take on custom performance —bold and sleek, illuminated in yellow, orange and red for a distinct look. Including easy-to-read mph, rpm and fuel gauges, the instrument cluster is built onto an internally wired, meaty 1.5´ angular cast handlebar.

General information
Model:Harley-Davidson VRSCF V-Rod Muscle
Year:2012
Category:Custom / cruiser
Rating:65.6 out of 100. Show full rating and compare with other bikes
Price as new (MSRP):US$ 14999. Euro 18445. UK £ 13999. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:1250.08 ccm (76.28 cubic inches)
Engine type:V2, four-stroke
Engine details:Liquid-cooled, Revolution®, 60° V-Twin. Overhead cam, 4 valves per cylinder, solid tappet with shim-under-bucket lash adjustment.
Torque:116.62 Nm (11.9 kgf-m or 86.0 ft.lbs) @ 6500 RPM
Compression:11.5:1
Bore x stroke:105.0 x 72.0 mm (4.1 x 2.8 inches)
Valves per cylinder:4
Fuel system:Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Fuel control:DOHC
Lubrication system:Pressurized, dry-sump
Cooling system:Liquid
Gearbox:5-speed
Transmission type,
final drive:
Belt
Clutch:Multi-plate with diaphragm spring in oil bath
Driveline:Primary Drive Gear, 117/64 ratio Final Drive Belt, 72/28 ratio. High-performance carbon-fiber drive belt.
Fuel consumption:6.36 litres/100 km (15.7 km/l or 36.98 mpg)
Greenhouse gases:147.6 CO2 g/km. (CO2 - Carbon dioxide emission)
Exhaust system:Satin chrome, dual side exhaust system with turnouts
Chassis, suspension, brakes and wheels
Frame type:Steel perimeter upper frame with hydroformed main rails and bolt-on lower frame rails; MIG welded
Rake (fork angle):34.0°
Trail:142 mm (5.6 inches)
Front suspension:43 mm Inverted fork
Front suspension travel:102 mm (4.0 inches)
Rear suspension:Preload adjustable shocks. Polished, one-piece cast aluminum with black powder-coat finish swingarm.
Rear suspension travel:74 mm (2.9 inches)
Front tyre dimensions:120/70-ZR19
Rear tyre dimensions:240/40-R18
Front brakes:Single disc. 4-piston calipers. Optional ABS.
Front brakes diameter:300 mm (11.8 inches)
Rear brakes:Single disc. 4-piston caliper. Optional ABS.
Rear brakes diameter:300 mm (11.8 inches)
Wheels:Black, 5-Spoke Cast Aluminum
Physical measures and capacities
Dry weight:290.3 kg (640.0 pounds)
Weight incl. oil, gas, etc:305.3 kg (673.0 pounds)
Seat height:650 mm (25.6 inches) If adjustable, lowest setting.
Overall length:2,357 mm (92.8 inches)
Ground clearance:122 mm (4.8 inches)
Wheelbase:1,702 mm (67.0 inches)
Fuel capacity:18.93 litres (5.00 gallons)
Oil capacity:4.70 litres (0.31 quarts)
Other specifications
Starter:Electric
Instruments:Electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, tachometer
Electrical:Sealed, maintenance-free battery, 12V, 19-amp/hour, 270 cca
Seat:Deep, drag-style two-up seat
Factory warranty:2 years, unlimited mileage.
Color options:Vivid Black, Black Denim, Chrome Yellow featuring black graphics
