09 Harley-Davidson VRSCDX Night Rod Special specificationsHarley-Davidson VRSCDX Night Rod Special 2009

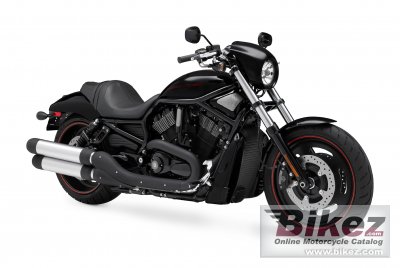

2009 Harley-Davidson VRSCDX Night Rod Special photo
Picture credits - Harley-Davidson. Click to submit more pictures.
   Show big 2009 Harley-Davidson VRSCDX Night Rod Special imageShow more 2009 Harley-Davidson VRSCDX Night Rod Special images
2009 Harley-Davidson VRSCDX Night Rod Special

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Harley-Davidson's profilation of this bike
An all-black Revolution engine, fork legs, swingarm and other blacked-out components give the VRSCDX Night Rod Special a raw, street-tough attitude. A colour-matched nacelle surrounds a round reflector-optic headlight. The straight-shot dual mufflers have black end caps and heat shields.

General information
Model:Harley-Davidson VRSCDX Night Rod Special
Year:2009
Category:Custom / cruiser
Rating:78.5 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:1250.00 ccm (76.28 cubic inches)
Engine type:V2, four-stroke
Torque:111.00 Nm (11.3 kgf-m or 81.9 ft.lbs) @ 7200 RPM
Bore x stroke:105.0 x 72.0 mm (4.1 x 2.8 inches)
Fuel system:Injection
Cooling system:Liquid
Gearbox:5-speed
Transmission type,
final drive:
Belt
Clutch:9-plate, wet, A and S (Assist and Slip)
Exhaust system:Brushed, straight-shot exhaust with dual mufflers,
Chassis, suspension, brakes and wheels
Frame type:Steel perimeter upper frame with hydroformed main rails
Rake (fork angle):34.0
Trail:115 mm (4.5 inches)
Front suspension:Wide, 49mm custom fork
Front suspension travel:102 mm (4.0 inches)
Rear suspension:Preload adjustable
Rear suspension travel:102 mm (4.0 inches)
Front tyre dimensions:120/70-ZR19
Rear tyre dimensions:240/40-R18
Front brakes:Double disc. Bremo, 4-piston calipers, ABS
Front brakes diameter:300 mm (11.8 inches)
Rear brakes:Single disc. Bremo, 4-piston calipers, ABS
Rear brakes diameter:300 mm (11.8 inches)
Physical measures and capacities
Dry weight:292.0 kg (643.7 pounds)
Seat height:640 mm (25.2 inches) If adjustable, lowest setting.
Overall length:2,460 mm (96.9 inches)
Ground clearance:107 mm (4.2 inches)
Fuel capacity:18.90 litres (4.99 gallons)
Other specifications
Color options:Black Denim with Vivid Black Racing Stripe, Vivid Black with Pewter Pearl Racing Stripe; Vivid Black with Mirage Orange Pearl Racing Stripe
Comments:Black powder-coated engine with black treatment covers; Sport front fender with painted brace supports; Low-profile rear fender; Colour-matched headlamp nacelle; Slipper clutch; Lighter clutch lever operation; Forward-mounted rider footpegs; Standard passenger footpegs; Stainless steel, low-rise handlebar; Two-piece, two-up textured vinyl seat;
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 09 Harley-Davidson VRSCDX Night Rod Special discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Discussions for every bike

Bikez has discussion forums for every bike. View comments, questions and answers at the 2009 Harley-Davidson VRSCDX Night Rod Special discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review.

If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.


Rating sample for this Harley-Davidson bike
Offroad capabilities for the 2009 Harley-Davidson VRSCDX Night Rod Special:


(41.8 out of 100)

Click here for complete rating. You can also compare bikes.
