| Harley-Davidson's profilation of this bike |
| The menacing look of a raging bull with the brute power of 122 thoroughbreds. Take to the streets in an aggressive power cruising position. With its aluminum shell cast over steel 1-inch tubing and internally-routed wiring, this angular drag-inspired bar comes on with a clean, mean and meaty attitude. |
| General information |
|---|

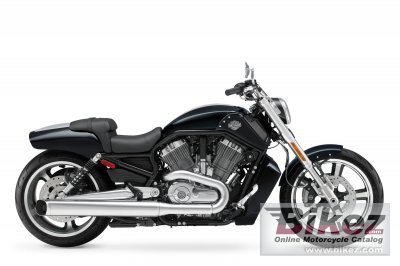

| Model: | Harley-Davidson V-Rod Muscle | | Year: | 2013 | | Category: | Custom / cruiser | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Price as new (MSRP): | US$ 15149. Euro 18445. UK £ 13995. Prices depend on country, taxes, accessories, etc. | | Engine and transmission |
|---|
| Displacement: | 1250.08 ccm (76.28 cubic inches) | | Engine type: | V2, four-stroke | | Engine details: | Liquid-cooled, Revolution®, 60° V-Twin | | Torque: | 117.97 Nm (12.0 kgf-m or 87.0 ft.lbs) @ 6750 RPM | | Compression: | 11.5:1 | | Bore x stroke: | 105.0 x 72.0 mm (4.1 x 2.8 inches) | | Fuel system: | Injection. Electronic Sequential Port Fuel Injection | | Lubrication system: | Dry sump | | Cooling system: | Liquid | | Gearbox: | 6-speed | Transmission type,
final drive: | Belt | | Clutch: | Multi-plate with diaphragm spring in oil bath | | Driveline: | Gear, 117/64 ratio primary drive | | Fuel consumption: | 6.36 litres/100 km (15.7 km/l or 36.98 mpg) | | Greenhouse gases: | 147.6 CO2 g/km. (CO2 - Carbon dioxide emission) | | Exhaust system: | Satin chrome, dual side exhaust system with turnouts | | Chassis, suspension, brakes and wheels |
|---|
| Rake (fork angle): | 34.0° | | Trail: | 142 mm (5.6 inches) | | Front tyre dimensions: | MT90-ZR19 | | Rear tyre dimensions: | MU85-R18 | | Front brakes: | Single disc. 4-piston | | Rear brakes: | Single disc. 2-piston | | Wheels: | Black, 5-Spoke Cast Aluminum | | Physical measures and capacities |
|---|
| Dry weight: | 292.1 kg (644.0 pounds) | | Weight incl. oil, gas, etc: | 307.1 kg (677.0 pounds) | | Seat height: | 650 mm (25.6 inches) If adjustable, lowest setting. | | Overall length: | 2,357 mm (92.8 inches) | | Ground clearance: | 122 mm (4.8 inches) | | Wheelbase: | 1,702 mm (67.0 inches) | | Fuel capacity: | 18.93 litres (5.00 gallons) | | Oil capacity: | 4.70 litres (0.31 quarts) | | Other specifications |
|---|
| Instruments: | Electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, tachometer | | Light: | High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), coolant temperature, low fuel warnings | | Color options: | White Hot Denim, Vivid Black, Candy Orange, Midnight Pearl/Brilliant Silver Pearl | | Further information |
|---|
| Parts and accessories | Check out parts and accessories from our other partners. |
| Ask questions | Join the 13 Harley-Davidson V-Rod Muscle discussion group. |
| Insurance, loans, tests
| Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc. |
| Related bikes | List related bikes for comparison of specs |
