| Harley-Davidson's profilation of this bike |
| Long-haul comfort, convenience and storage capacity wrapped in unmistakable style. The knowledge of what makes an engine truly move a rider runs deep at The Motor Company, and it was put to good use when we created the Twin Cam 103™ engine. We painstakingly perfected every cubic inch, pushing design and technology forward—all without compromising one bit of Harley-Davidson´s unique styling. |
| General information |
|---|

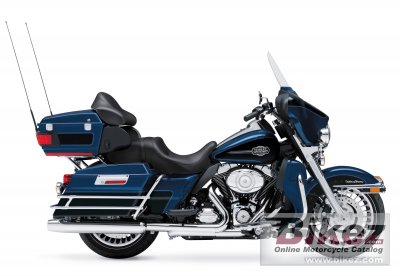

| Model: | Harley-Davidson Ultra Classic Electra Glide | | Year: | 2013 | | Category: | Touring | | Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. | | Price as new (MSRP): | US$ 21799. Euro 25895. UK £ 19995. Prices depend on country, taxes, accessories, etc. | | Engine and transmission |
|---|
| Displacement: | 1687.97 ccm (103.00 cubic inches) | | Engine type: | V2, four-stroke | | Engine details: | Air-cooled Twin Cam 103™ with Integrated Oil-Cooler | | Torque: | 135.60 Nm (13.8 kgf-m or 100.0 ft.lbs) @ 3250 RPM | | Compression: | 9.6:1 | | Bore x stroke: | 98.4 x 111.3 mm (3.9 x 4.4 inches) | | Fuel system: | Injection. Electronic Sequential Port Fuel Injection (ESPFI) | | Cooling system: | Oil & air | | Gearbox: | 6-speed | Transmission type,
final drive: | Belt | | Clutch: | Multi-plate with diaphragm spring in oil bath | | Driveline: | Chain, 34/46 ratio primary drive | | Fuel consumption: | 5.60 litres/100 km (17.9 km/l or 42.00 mpg) | | Greenhouse gases: | 129.9 CO2 g/km. (CO2 - Carbon dioxide emission) | | Exhaust system: | Chrome, 2-1-2 dual exhaust with tapered mufflers | | Chassis, suspension, brakes and wheels |
|---|
| Rake (fork angle): | 26.0° | | Trail: | 170 mm (6.7 inches) | | Front tyre dimensions: | 130/80-NW17 | | Rear tyre dimensions: | 180/65-NW16 | | Front brakes: | Double disc. 4-piston | | Rear brakes: | Single disc. 2-piston | | Wheels: | Black, 28-spoke Cast Aluminum | | Physical measures and capacities |
|---|
| Dry weight: | 400.1 kg (882.0 pounds) | | Weight incl. oil, gas, etc: | 413.2 kg (911.0 pounds) | | Seat height: | 693 mm (27.3 inches) If adjustable, lowest setting. | | Overall length: | 2,504 mm (98.6 inches) | | Ground clearance: | 130 mm (5.1 inches) | | Wheelbase: | 1,613 mm (63.5 inches) | | Fuel capacity: | 22.71 litres (6.00 gallons) | | Oil capacity: | 3.80 litres (0.25 quarts) | | Other specifications |
|---|
| Instruments: | Fairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicator light; cruise control indicator light Tachometer with fuel, voltage, oil pressure and ambient air temperature gauges | | Light: | High beam, running lights, front fender running lights, directional light bar, low oil pressure, engine diagnostics, cruise control, speakers, accessory, security system (optional), 6-speed, low fuel warning, ABS (optional) | | Carrying capacity: | Saddle bags, top box | | Color options: | Midnight Pearl/Brilliant Silver Pearl, Big Blue Pearl/Vivid Black, Ember Red Sunglo, White Hot Pearl, Vivid Black | | Comments: | Windshield. | | Further information |
|---|
| Parts and accessories | Check out parts and accessories from our other partners. |
| Ask questions | Join the 13 Harley-Davidson Ultra Classic Electra Glide discussion group. |
| Insurance, loans, tests
| Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc. |
| Related bikes | List related bikes for comparison of specs |
