13 Harley-Davidson Softail Fat Boy Lo specificationsHarley-Davidson Softail Fat Boy Lo 2013

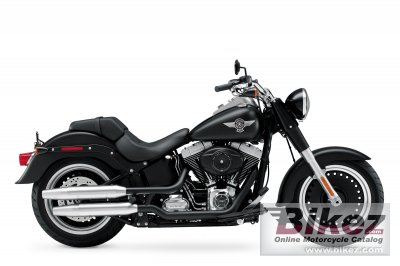

2013 Harley-Davidson Softail Fat Boy Lo photo
Picture credits - Harley-Davidson. Click to submit more pictures.
   Show big 2013 Harley-Davidson Softail Fat Boy Lo imageShow more 2013 Harley-Davidson Softail Fat Boy Lo images
2013 Harley-Davidson Softail Fat Boy Lo

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Harley-Davidson's profilation of this bike
Fat, dark and strong, this down-and-dirty version of the custom icon is the big dog on the road. Big in all the right places. The 17-inch wheels of black, bullet-hole, disc-cast aluminum definitely make an impression—especially with rubber 140mm wide in front and a beefy 200mm in back. And check out the chopsticks up front—fat front fork behind the huge, gorgeous headlamp.

General information
Model:Harley-Davidson Softail Fat Boy Lo
Year:2013
Category:Custom / cruiser
Rating:Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating.
Price as new (MSRP):US$ 16799. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:1687.97 ccm (103.00 cubic inches)
Engine type:V2, four-stroke
Engine details:Air-cooled, Twin Cam 103B™
Torque:133.84 Nm (13.6 kgf-m or 98.7 ft.lbs) @ 3000 RPM
Compression:9.6:1
Bore x stroke:98.4 x 111.3 mm (3.9 x 4.4 inches)
Fuel system:Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Cooling system:Air
Gearbox:6-speed
Transmission type,
final drive:
Belt
Clutch:Multi-plate with diaphragm spring in oil bath
Driveline:Primary chain, 34/46 ratio
Fuel consumption:5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Greenhouse gases:129.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Exhaust system:Denim Black and Satin Chrome, over/under shotgun exhaust with dual mufflers
Chassis, suspension, brakes and wheels
Rake (fork angle):31.6°
Trail:147 mm (5.8 inches)
Front tyre dimensions:140/75-R17
Rear tyre dimensions:200/55-R17
Front brakes:Double disc. 4-piston
Rear brakes:Single disc. 2-piston
Wheels:Black, Bullet Hole Disc Cast Aluminum
Physical measures and capacities
Dry weight:313.0 kg (690.0 pounds)
Weight incl. oil, gas, etc:330.2 kg (728.0 pounds)
Seat height:616 mm (24.3 inches) If adjustable, lowest setting.
Overall length:2,395 mm (94.3 inches)
Ground clearance:122 mm (4.8 inches)
Wheelbase:1,638 mm (64.5 inches)
Fuel capacity:18.93 litres (5.00 gallons)
Oil capacity:3.30 litres (0.22 quarts)
Other specifications
Starter:Electric
Instruments:Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator light
Light:High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), 6-speed, low fuel warnings
Color options:Anniversary Vintage Bronze/Anniversary Vintage Black, Candy Orange, Black Denim, Vivid Black
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 13 Harley-Davidson Softail Fat Boy Lo discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Rate motorcycles you know

Rate motorcycles you know and help your fellow riders to find the bike that is right for them. Bikez has the most users and the most extensive motorcycle rating on the net. It includes reliability, design, engine performance, accident risk, repair cost, offroad capabilities, racing track capabilities and touring capabilities.

The ratings are also used to rank the 100 most popular MC models each year since 1990. The lists are adjusted weekly as new ratings are added. You can check out the rating of the 2013 Harley-Davidson Softail Fat Boy Lo and compare it to other bikes here.
