| Harley-Davidson's profilation of this bike |
| Blackline´s clean look, simplified profile, and defiant attitude embrace the pure essence of riding. The minimal tank graphics, split drag bars and narrow backend allow the Twin Cam 96 V-Twin engine and fuel tank to steal the show. Blackline is a modern metal machine built for freedom seekers who just want to get on and go. |
| General information |
|---|

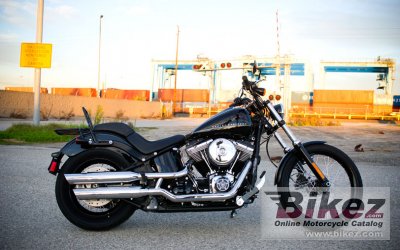

| Model: | Harley-Davidson Softail Blackline Dark Custom | | Year: | 2013 | | Category: | Custom / cruiser | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Price as new (MSRP): | US$ 15599. Prices depend on country, taxes, accessories, etc. | | Engine and transmission |
|---|
| Displacement: | 1687.97 ccm (103.00 cubic inches) | | Engine type: | V2, four-stroke | | Engine details: | Air-cooled, Twin Cam 103B™ | | Torque: | 133.84 Nm (13.6 kgf-m or 98.7 ft.lbs) @ 3250 RPM | | Compression: | 9.6:1 | | Bore x stroke: | 98.4 x 111.1 mm (3.9 x 4.4 inches) | | Fuel system: | Injection. Electronic Sequential Port Fuel Injection (ESPFI) | | Cooling system: | Air | | Gearbox: | 6-speed | Transmission type,
final drive: | Belt | | Clutch: | Multi-plate with diaphragm spring in oil bath | | Exhaust system: | Chrome, over/under shotgun exhaust with slash-cut mufflers | | Chassis, suspension, brakes and wheels |
|---|
| Rake (fork angle): | 30.0° | | Trail: | 122 mm (4.8 inches) | | Front tyre dimensions: | MH90-21 | | Rear tyre dimensions: | 200/55-R17 | | Front brakes: | Single disc | | Rear brakes: | Single disc | | Wheels: | Black Anodized, Profile Laced Aluminum | | Physical measures and capacities |
|---|
| Dry weight: | 293.9 kg (648.0 pounds) | | Weight incl. oil, gas, etc: | 306.2 kg (675.0 pounds) | | Seat height: | 610 mm (24.0 inches) If adjustable, lowest setting. | | Overall length: | 2,362 mm (93.0 inches) | | Ground clearance: | 133 mm (5.3 inches) | | Fuel capacity: | 18.93 litres (5.00 gallons) | | Oil capacity: | 3.30 litres (0.22 quarts) | | Other specifications |
|---|
| Instruments: | Triple clamp-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/gear display, engine diagnostics readout, low fuel warning light and mileage countdown feature, low oil pressure indicator, 6-speed indicator, ABS indicator (optional), LED indicator lights | | Light: | High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), 6-speed, low fuel warnings | | Color options: | Black | | Further information |
|---|
| Parts and accessories | Check out parts and accessories from our other partners. |
| Ask questions | Join the 13 Harley-Davidson Softail Blackline Dark Custom discussion group. |
| Insurance, loans, tests
| Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc. |
| Related bikes | List related bikes for comparison of specs |
