| General information |
|---|

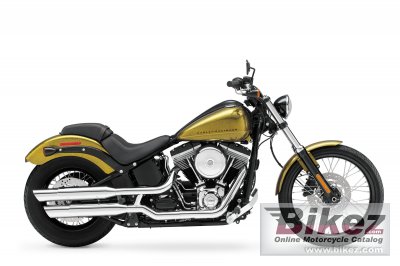

| Model: | Harley-Davidson Softail Blackline |
| Year: | 2013 |
| Category: | Custom / cruiser |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Price as new (MSRP): | US$ 15599. Euro 16895. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 1687.97 ccm (103.00 cubic inches) |
| Engine type: | V2, four-stroke |
| Engine details: | Air-cooled, Twin Cam 103B™ |
| Torque: | 133.84 Nm (13.6 kgf-m or 98.7 ft.lbs) @ 3250 RPM |
| Compression: | 9.6:1 |
| Bore x stroke: | 98.4 x 111.1 mm (3.9 x 4.4 inches) |
| Fuel system: | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Cooling system: | Air |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Belt |
| Clutch: | Multi-plate with diaphragm spring in oil bath |
| Driveline: | Primary chain, 34/46 ratio |
| Fuel consumption: | 5.60 litres/100 km (17.9 km/l or 42.00 mpg) |
| Greenhouse gases: | 129.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system: | Chrome, over/under shotgun exhaust with slash-cut mufflers |
| Chassis, suspension, brakes and wheels |
|---|
| Rake (fork angle): | 30.0° |
| Trail: | 122 mm (4.8 inches) |
| Front tyre dimensions: | MH90-21 |
| Rear tyre dimensions: | 200/55-R17 |
| Front brakes: | Single disc. 4-piston |
| Rear brakes: | Single disc. 2-piston |
| Wheels: | Black Anodized, Profile Laced Aluminum |
| Physical measures and capacities |
|---|
| Dry weight: | 293.9 kg (648.0 pounds) |
| Weight incl. oil, gas, etc: | 306.2 kg (675.0 pounds) |
| Seat height: | 610 mm (24.0 inches) If adjustable, lowest setting. |
| Overall length: | 2,362 mm (93.0 inches) |
| Ground clearance: | 133 mm (5.3 inches) |
| Fuel capacity: | 18.93 litres (5.00 gallons) |
| Oil capacity: | 3.30 litres (0.22 quarts) |
| Other specifications |
|---|
| Starter: | Electric |
| Instruments: | Triple clamp-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/gear display, engine diagnostics readout, low fuel warning light and mileage countdown feature, low oil pressure indicator, 6-speed indicator, ABS indicator (optional), LED indicator lights |
| Light: | High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), 6-speed, low fuel warnings |
| Color options: | Hard Candy Coloma Gold Flake, Candy Orange/Beer Bottle, Midnight Pearl/Brilliant Silver Pearl, Black Denim, Vivid Black |
