| General information |
|---|

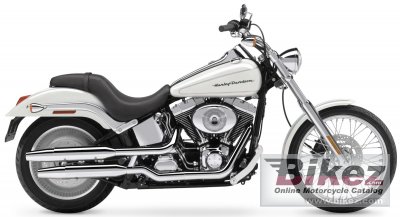

| Model: | Harley-Davidson FXSTDI Softail Deuce |
| Year: | 2004 |
| Category: | Custom / cruiser |
| Rating: | 73.7 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 1449.00 ccm (88.42 cubic inches) |
| Engine type: | V2 |
| Stroke: | 4 |
| Torque: | 102.00 Nm (10.4 kgf-m or 75.2 ft.lbs) @ 3500 RPM |
| Compression: | 8.8:1 |
| Bore x stroke: | 95.3 x 101.6 mm (3.8 x 4.0 inches) |
| Fuel system: | Injection |
| Valves per cylinder: | 2 |
| Fuel control: | DOHC |
| Cooling system: | Air |
| Gearbox: | 5-speed |
Transmission type
final drive: | Belt |
| Physical measures |
|---|
| Dry weight: | 292.0 kg (643.7 pounds) |
| Seat height: | 660 mm (26.0 inches) If adjustable, lowest setting. |
| Overall length: | 2,424 mm (95.4 inches) |
| Ground clearance: | 142 mm (5.6 inches) |
| Wheelbase: | 1,690 mm (66.5 inches) |
| Chassis and dimensions |
|---|
| Rake (fork angle): | 32.0° |
| Trail: | 127 mm (5.0 inches) |
| Front tyre dimensions: | 90/90-21 |
| Rear tyre dimensions: | 160/70-17 |
| Front brakes: | Single disc |
| Front brakes diameter: | 292 mm (11.5 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 292 mm (11.5 inches) |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 18.90 litres (4.99 gallons) |
| Color options: | Vivid black, brilliant silver, sierra red, impact blue, glacier white pearl, lava red sunglo, two-tone luxury blue and impact blue, two-tone luxury teal and brilliant silver, two-tone smokey gold and vivid black
|
| Comments: | Black powder-coated engine with chrome covers; stretched tank; chrome front forks; chrome risers with low-rise handlebars; chrome fender supports with hidden hardware; full-length chrome tank console; wire-laced front wheel, 432 mm disc rear wheel; Badlander style seat; 160mm wide rear tyre
|
