| General information |
|---|

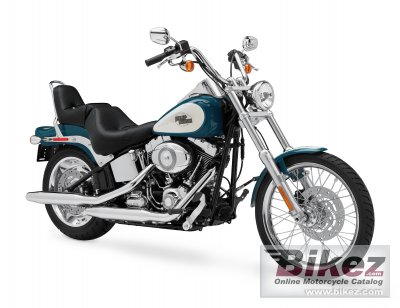

| Model: | Harley-Davidson FXSTC Softail Custom |
| Year: | 2009 |
| Category: | Custom / cruiser |
| Rating: | 66.8 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 1584.00 ccm (96.66 cubic inches) |
| Engine type: | V2 |
| Stroke: | 4 |
| Torque: | 117.00 Nm (11.9 kgf-m or 86.3 ft.lbs) @ 3200 RPM |
| Compression: | 9.2:1 |
| Fuel system: | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Starter: | Electric |
| Cooling system: | Air |
| Gearbox: | 6-speed |
Transmission type
final drive: | Belt |
| Clutch: | 9-plate, wet |
| Physical measures |
|---|
| Dry weight: | 303.0 kg (668.0 pounds) |
| Seat height: | 672 mm (26.5 inches) If adjustable, lowest setting. |
| Overall length: | 2,410 mm (94.9 inches) |
| Ground clearance: | 130 mm (5.1 inches) |
| Wheelbase: | 1,700 mm (66.9 inches) |
| Chassis and dimensions |
|---|
| Frame type: | Mild steel tubular frame; rectangular section backbone;stamped, cast, and forged junctions; forged fender supports; MIG welded |
| Rake (fork angle): | 32.0° |
| Trail: | 147 mm (5.8 inches) |
| Front suspension: | 41.3 mm telescopic, chrome dust covers |
| Front suspension travel: | 142 mm (5.6 inches) |
| Rear suspension: | Hidden, horizontal-mounted, coil-over |
| Rear suspension travel: | 109 mm (4.3 inches) |
| Front tyre dimensions: | MH90-21 |
| Rear tyre dimensions: | 200/55-R17 |
| Front brakes: | Single disc. 4-piston |
| Front brakes diameter: | 292 mm (11.5 inches) |
| Rear brakes: | Single disc. 2-piston |
| Rear brakes diameter: | 292 mm (11.5 inches) |
| Exhaust system: | Chrome, staggered shorty exhaust with dual mufflers |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 18.90 litres (4.99 gallons) |
| Color options: | Vivid Black, Dark Blue Pearl, Red Hot Sunglo, Deep Turquoise and Antique White,
Flame Blue Pearl and Pewter Pearl |
| Modifications compared to previous model: | New lowprofile front fender |
| Comments: | Black powder-coated engine with chrome treatment covers; Chrome “horseshoe”
oil tank with chrome external oil lines; Chrome, nostalgic fuel tank console;
Chrome, bullet headlamp; Chrome, isolated riser; Forward-mounted rider
footpegs; Standard passenger footpegs; Polished steel, “ape-hanger” handlebars;
One-piece, two-up Softail® classic seat; Passenger backrest; |
