| General information |
|---|

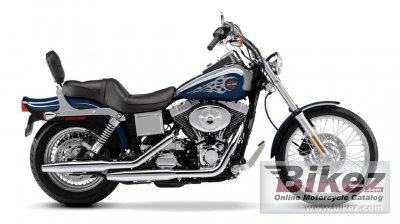

| Model: | Harley-Davidson FXDWG Dyna Wide Glide |
| Year: | 2002 |
| Category: | Custom / cruiser |
| Rating: | 68.3 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 1449.00 ccm (88.42 cubic inches) |
| Engine type: | V2 |
| Stroke: | 4 |
| Torque: | 106.00 Nm (10.8 kgf-m or 78.2 ft.lbs) @ 2900 RPM |
| Compression: | 8.8:1 |
| Bore x stroke: | 95.3 x 101.6 mm (3.8 x 4.0 inches) |
| Fuel system: | Carburettor |
| Cooling system: | Air |
Transmission type
final drive: | Belt |
| More details | Consult a Harley-Davidson repair manual. |
| Physical measures |
|---|
| Dry weight: | 300.0 kg (661.4 pounds) |
| Seat height: | 680 mm (26.8 inches) If adjustable, lowest setting. |
| Overall length: | 2,381 mm (93.7 inches) |
| Ground clearance: | 137 mm (5.4 inches) |
| Wheelbase: | 1,665 mm (65.6 inches) |
| Chassis and dimensions |
|---|
| Front brakes: | Single disc |
| Front brakes diameter: | 292 mm (11.5 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 292 mm (11.5 inches) |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 19.70 litres (5.20 gallons) |
| Reserve fuel capacity: | 4.20 litres (1.11 gallons) |
