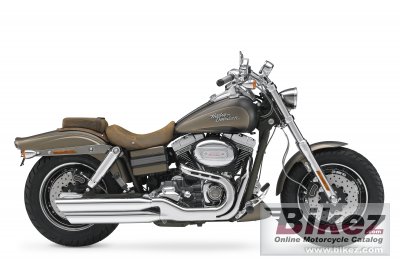

Harley-Davidson's profilation of this bike The Harley-Davidson® CVO™ Fat Bob® is a limited-production custom motorcycle that projects an agressive, super-duty presence behind a beefy front wheel, twisted Tommy Gun exhaust, bold paint and innovative custom styling. The CVO Fat Bob is based on the Harley-Davidson Dyna platform, which pairs Big Twin performance with an extended FX front end, exposed twin rear shock absorbers, and an under-seat battery box.
General information Model: Harley-Davidson FXDFSE2 CVO Fat Bob Year: 2010 Category: Custom / cruiser Rating: 65.3 out of 100. Show full rating and compare with other bikes Price as new (MSRP): US$ 25299. Prices depend on country, taxes, accessories, etc. Engine and transmission Displacement: 1800.00 ccm (109.84 cubic inches) Engine type: V2, four-stroke Power: 4.02 HP (2.9 kW)) Torque: 135.00 Nm (13.8 kgf-m or 99.6 ft.lbs) Compression: 9.2:1 Bore x stroke: 101.6 x 111.1 mm (4.0 x 4.4 inches) Fuel system: Injection. Electronic Sequential Port Fuel Injection (ESPFI) Cooling system: Air Gearbox: 6-speed Transmission type, final drive: Belt Clutch: Hydraulically actuated, 9-plate wet, with high performance spring Exhaust system: Chrome, 2-1-2 collector exhaust with dual mufflers Chassis, suspension, brakes and wheels Frame type: Mild steel, tubular frame; rectangular section backbone; Rake (fork angle): 29.0° Trail: 140 mm (5.5 inches) Front suspension: 49 mm with dual-rate springs Front suspension travel: 110 mm (4.3 inches) Rear suspension: Fully covered, coil-over shock Rear suspension travel: 54 mm (2.1 inches) Front tyre dimensions: 130/90-B16 Rear tyre dimensions: 180/70-B16 Front brakes: Double disc. 4-piston fixed Front brakes diameter: 300 mm (11.8 inches) Rear brakes: Single disc. 2-piston floating Rear brakes diameter: 292 mm (11.5 inches) Physical measures and capacities Dry weight: 315.0 kg (694.5 pounds) Power/weight ratio: 0.0128 HP/kg Seat height: 685 mm (27.0 inches) If adjustable, lowest setting. Overall length: 2,310 mm (90.9 inches) Ground clearance: 110 mm (4.3 inches) Wheelbase: 1,615 mm (63.6 inches) Fuel capacity: 18.80 litres (4.97 gallons) Oil capacity: 2.60 litres (0.17 quarts) Other specifications Starter: Electric Color options: Cryptic Black with Hellfire Flames, Satin Pewter with Sandstorm Grind, Opal Blue with Hellfire Flames Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questions Join the 10 Harley-Davidson FXDFSE2 CVO Fat Bob discussion group.
Insurance, loans, tests
Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikes List related bikes for comparison of specs
Rating sample for this Harley-Davidson bike
Reliability for the 2010 Harley-Davidson FXDFSE2 CVO Fat Bob: (77.1 out of 100) You can also compare bikes.
